Microscope Isolation Platform, Olympus BX51W, 50-80 lb. Payload

Olympus Microscope Isolation Platforms

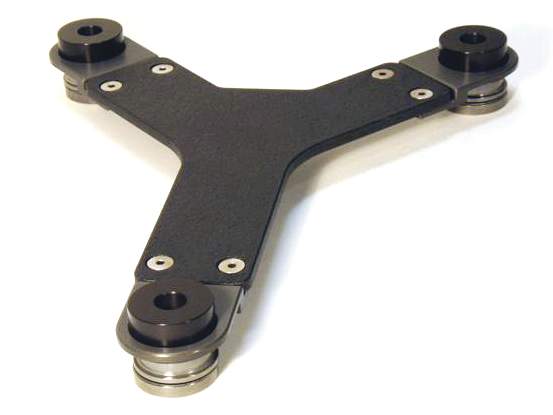

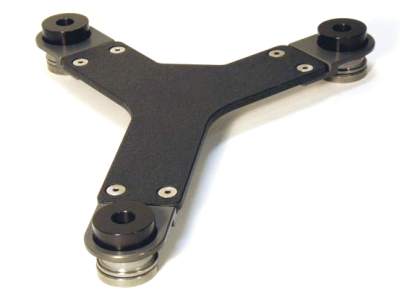

VIP3200 Series microscope platforms are the most popular vibration isolation platforms in the market tailored to the footprint of each microscope model. VIP3200-Y-022B is a compact, mechanical vibration isolation platform that fits the footprint of OlympusBX51W (Payload of 50-80 pounds), saving tabletop surfaces and providing effective vibration isolation and damping. With VIP3200 Series microscope platforms, the image quality of the microscope is greatly improved, delivering stable, repeable and accurate results.

Specifications

Technical Specs

Minimum Platform Load
50 lb
Load Capacity
80 lb
Horizontal Isolation, Resonance
6.3 Hz
Horizontal Amplification at Resonance
16 dB
Vertical Isolation, Resonance
6.8 Hz

Vertical Amplification at Resonance
17 dB
Microscope Model
BX51W
Weight
13 lb

Minimum Platform Load
50 lb
Load Capacity
80 lb
Horizontal Isolation, Resonance
6.3 Hz
Horizontal Amplification at Resonance
16 dB
Vertical Isolation, Resonance
6.8 Hz

Vertical Amplification at Resonance
17 dB
Microscope Model
BX51W
Weight
13 lb

Resources & Downloads

3D Product Models

Download CAD Files

Manuals

VIBe Series Isolation Platforms User's Manual(396.9 kB, PDF)

2D Product Drawings

VIP3200-Y-022B-DWG.pdf(393.3 kB, PDF)
