Vibration Isolation Platform, VIBe Mechanical, 12 x 18 in., 15-55 lbs.
Vibration Isolation Platform, VIBe Mechanical, 12 x 18 in., 15-55 lbs.
Model: VIP320-1218-1555
2 Weeks
Product Series Overview
VIP320X Mechanical Vibration Isolation PlatformNewer version

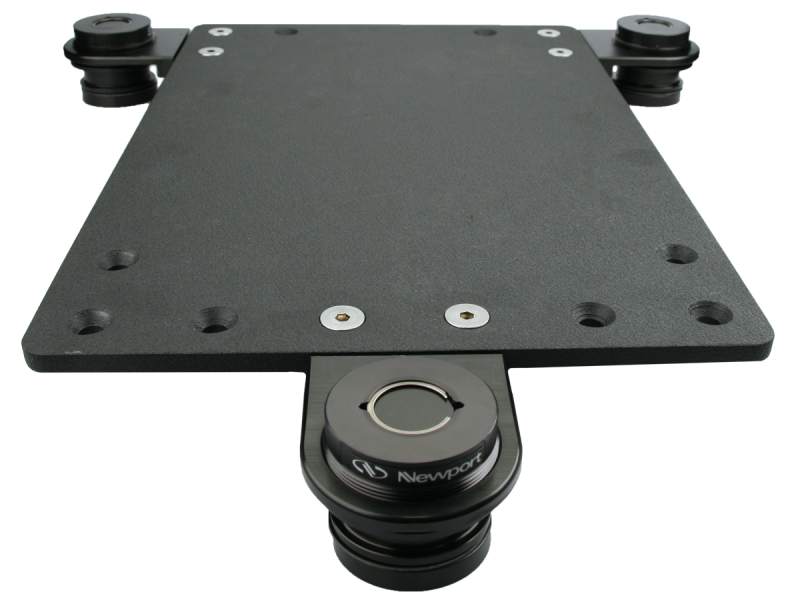

The VIP320 Series vibration isolation platforms are ideal for precision applications that don't require Pneumatic isolation. Featuring passive mechanical isolators that are compact and maintenance-free, the VIP320 platforms are an affordable and effective solution for vibration sensitive instruments. The VIP320-1218-1555 is a 12 x 18 inch platform with payload range of 15 lbs (6.8 kg) to 55 lbs (24.9 kg).
Specifications
- Length18 in.
- Width12 in.
- Thickness0.38 in.
- Height1.7 in.
- Minimum Platform Load15 lb
- Load Capacity55 lb
- Horizontal Isolation, Resonance6.3 Hz
- Horizontal Amplification at Resonance16 dB
- Vertical Isolation, Resonance6.8 Hz
- Vertical Amplification at Resonance17 dB
- Weight26 lb
