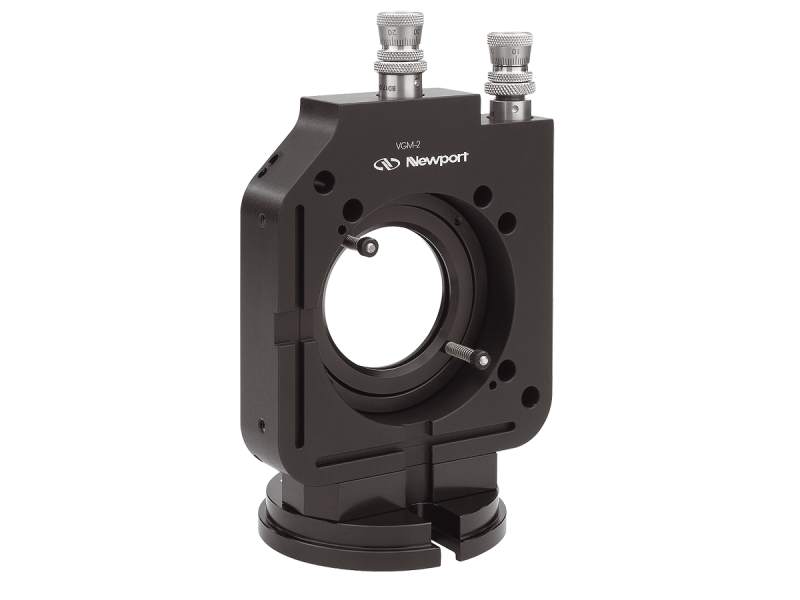

Gimbal Optical Mount, Vertical Drive, 2.0 in., AJS Adjustment Screws

  • Mechanism
    Gimbal
  • Optic Diameter
    50.8 mm
  • Number of Actuators
    2
  • Actuator Locks
    Yes
  • Adjustment Screw Thread
    100 TPI
  • Adjustments
    θx, θy
  • Sensitivity
    3.3 arc sec
  • Angular Range
    ±1.5°
  • Optic Loading
    Rear
  • Material
    Anodized Aluminum
  • Drive Type
    Knob, locking
  • Thread Type
    1/4-20 (M6) SLOT
  • Optical Axis Height
    50 mm
  • Clear Aperture
    46 mm
  • Special Features
    Low-Stress Mounting
