Mirror Mount Bundle, 10D620BD.2 Dielectric Mirror & M1 Mount

The M1 Mirror Mount is combined with the 10D620BD.2 mirror. The M1 mount coupled with the 10D620BD.2 mirror is an ideal packaged set for standard laboratory applications. Note that each item will be packaged separately for shipment.

M1 is a standard laboratory mirror mount, 1.0 inch in Diameter, with 2 Knob Actuators. It is ideal for general purpose applications requiring a compact, robust, kinematic design at an economical price. The M1 is an aperture version for 1 inch (25.4 mm) diameter optics. UPA-series adaptors, which are compatible with the M1 mount, allow other various sizes and types of optics to be securely held and positioned. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment.

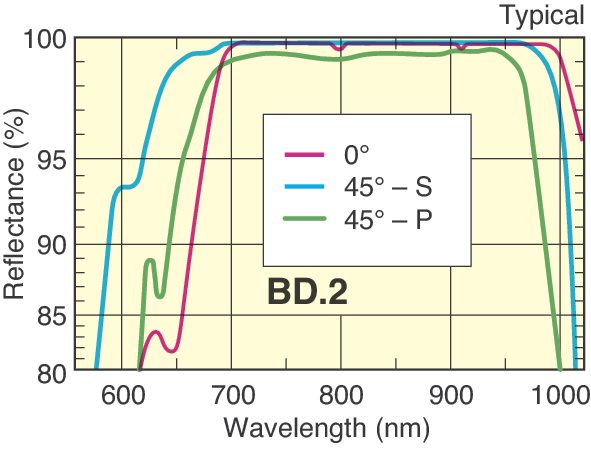

The 10D620BD.2 Broadband Dielectric Mirror is an extremely versatile mirror for laboratory applications and highly efficient over a broad wavelength range. This 1 inch (25.4 mm) diameter mirror is made from a 6.0 mm thick Borofloat® substrate. Our BD.2 coating offers high reflectance for near infrared diode laser applications. Reflectivity is greater than 99% for p-polarization and 98% for s-polarization from 700–950 nm at 0–45° angle of incidence. Greater than 80% average reflectivity at 632.8 nm is also provided to permit easy alignment using a HeNe laser. The BD-2 coating is extremely durable and will withstand repeated cleaning. This mirror has a λ/10 surface flatness and a 40-20 surface quality.
