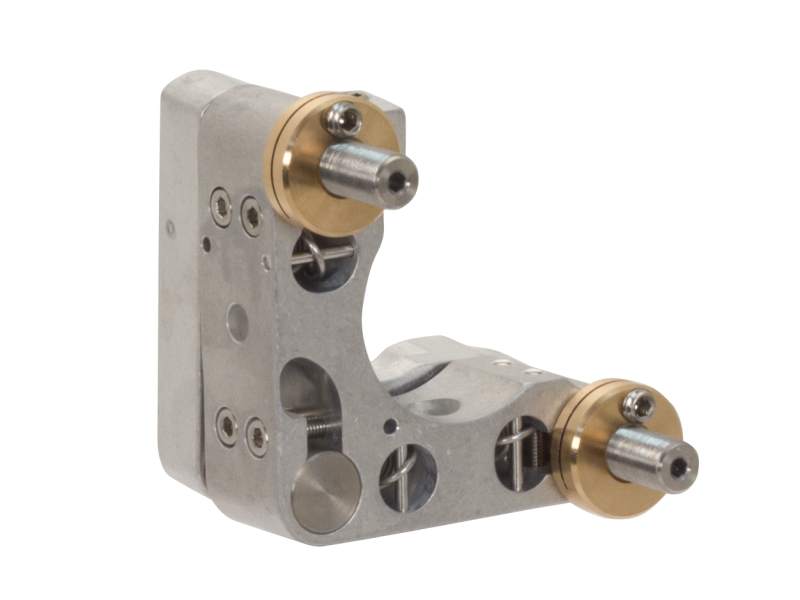

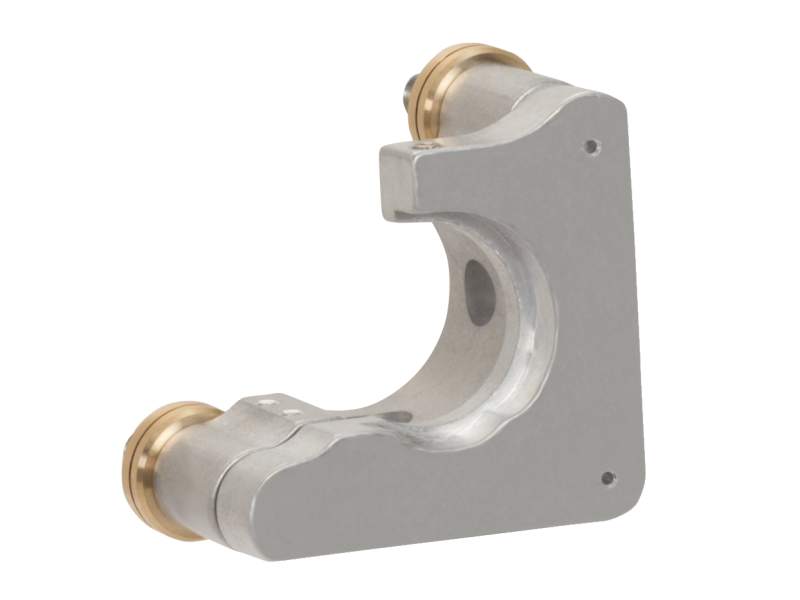

Mirror Mount, Clear Edge, Vacuum, 1 in., 2 Locking Allen-Keys, ULTIMA®

Technical Specs

  • Mechanism
    Kinematic
  • Optic Diameter
    25.4 mm
  • Adjustment Screw Thread
    100 TPI
  • Adjustments
    θx, θy
  • Sensitivity
    3.8 arc sec
  • Angular Range
    ±7°
  • Material
    Bare Aluminum
  • Drive Type
    Allen-Key, locking
  • Thread Type
    8-32 (M4) CLR
  • Optical Axis Height
    25.4 mm
  • Special Features
    Vacuum Compatible
