Light Source, Tunable, 300-1800 nm, 300 W Ozone Free Xe, USB, Interchangeable Slits

The TLS-300XU is part of Oriel’s upgraded Tunable Light Source (TLS) Series: a compact, fully assembled illuminator solution.

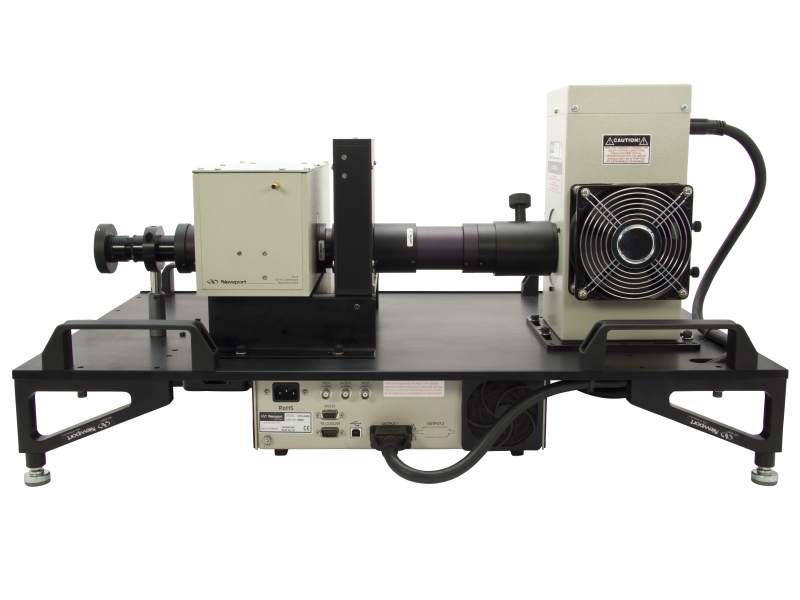

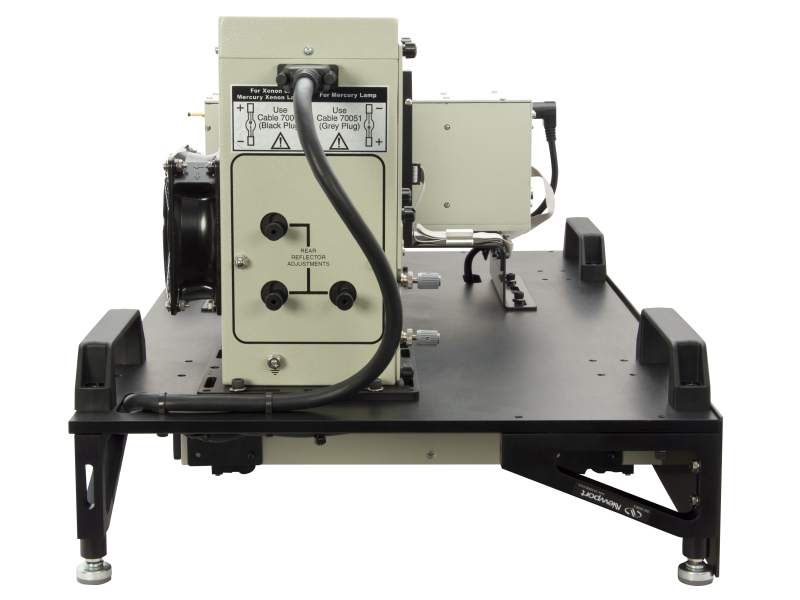

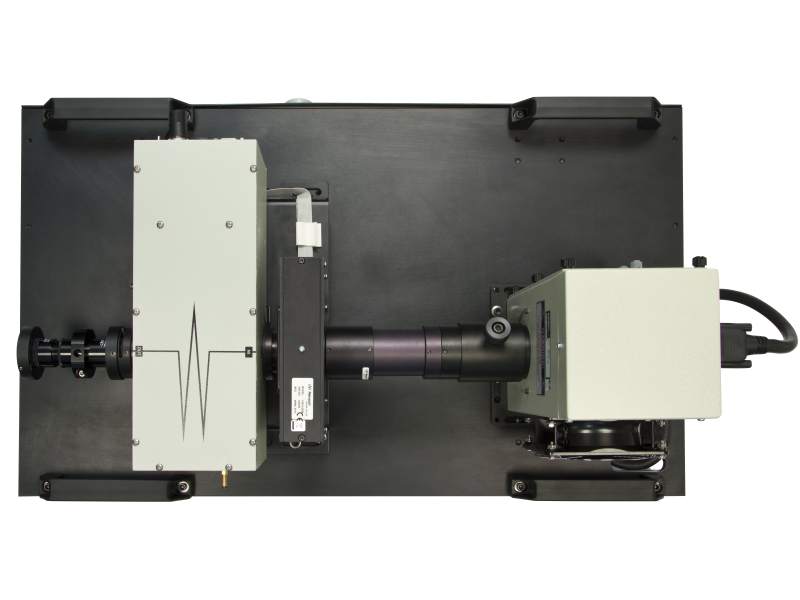

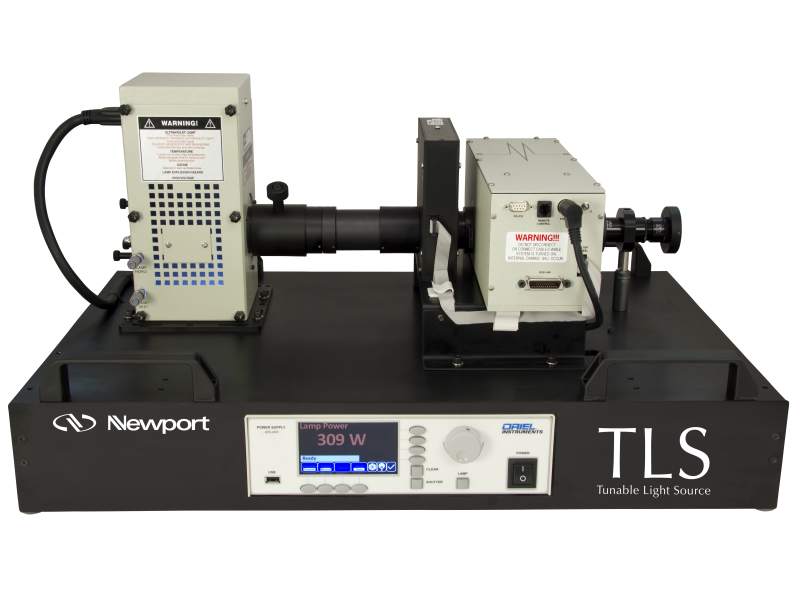

 This complete plug and play system consists of the following components mounted to a custom baseplate:

• 6258 300 W Ozone Free Xenon Arc Lamp
• 66902 Research Arc Lamp Housing

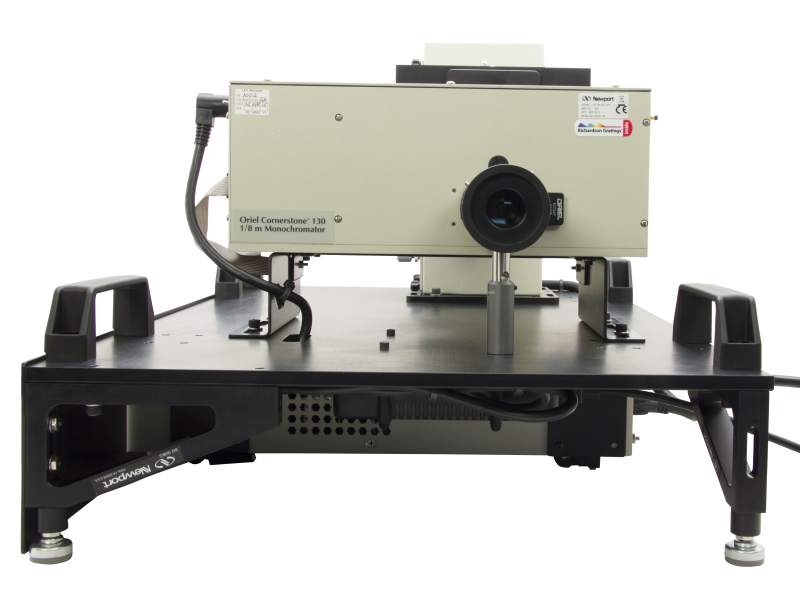

• CS130-USB-3-FH Cornerstone 130 Monochromator
• OPS-A500 DC Arc Lamp Power Supply

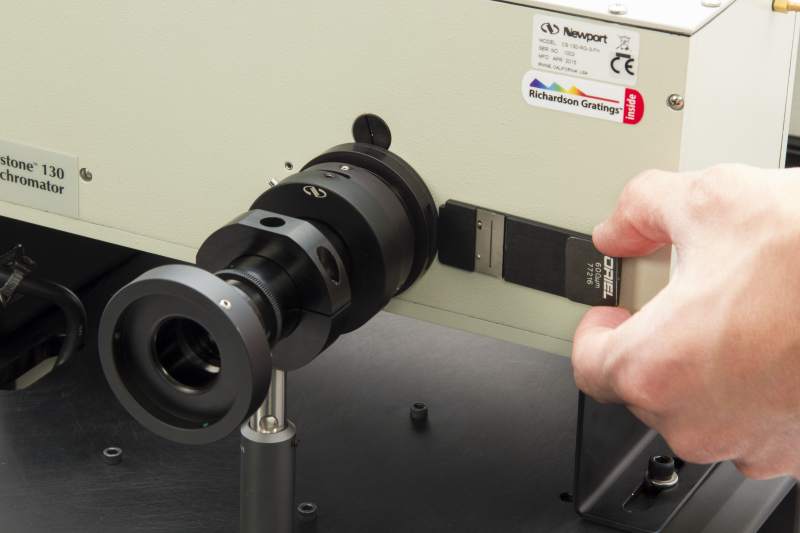

Each system is pre-aligned during production and packaged with the unit’s final test data. TRACQ-BASIC-V066, the most advanced version of Oriel’s Data Acquisition and Spectroscopy Control software is included and can be used to remotely control the system by PC via the monochromator’s USB 2.0 port. Resolution up to 0.7 nm is possible over a wavelength output of 300-1800 nm. Output resolution and light throughput can be adjusted by changing the fixed slits at the input and output of the monochromator. Fixed slit pairs of 280 µm, and 600 µm widths are included with system. Fixed slits of additional slit widths are available separately from Oriel Instruments.

This new generation of TLS includes a manual iris aperture on the output of the system as well as LT10-UADPT, a removable mechanic flange used to couple Oriel Instruments' 1.5 inch products to 1.0 inch for increased compatibility with Newport products.

Due to its intense UV spectral output profile below 400 nm, Oriel recommends wearing the necessary safety equipment such as UV protective eyewear. Safety goggles or spectacles are offered separately.
