Plano-Convex Lens, Nano-Textured Fused Silica, 12.7 mm, 100 mm EFL, 500-1100 nm

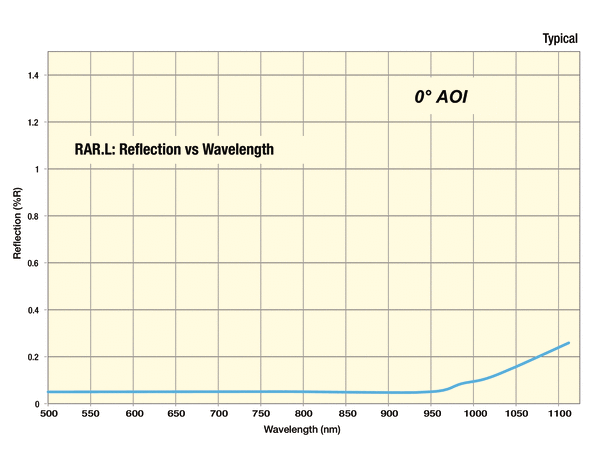

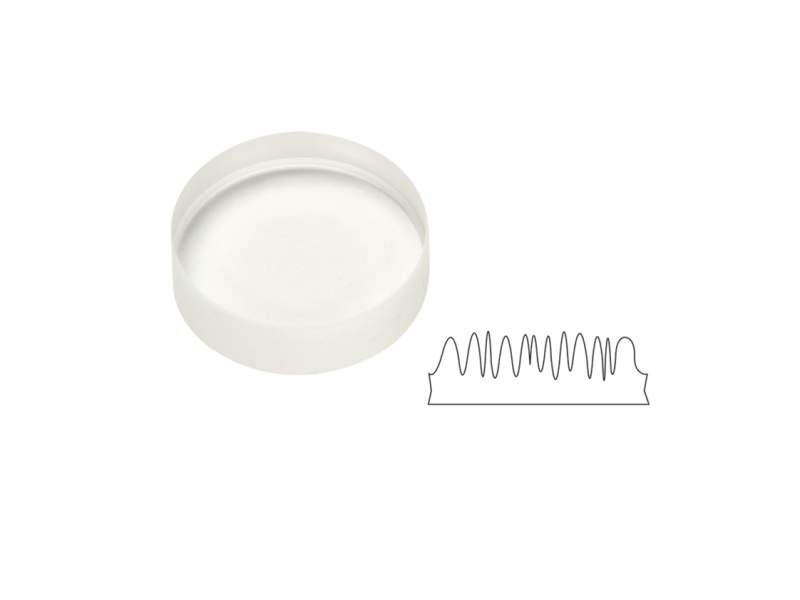

The SPX503RAR.L Fused Silica Plano-Convex Lens is made of high purity UV Grade Fused Silica Corning 7980 0A material. It is 12.7 mm diameter plano-concvex lens with an effective focal length of 100 mm. The front and back surfaces have sub-wavelength nano-textures etched into the surface creating a high performance anti-reflection effect. The RAR.L pattern is optimized for 500-1100 nm. The surface quality of the lens is 10-5 scratch dig with high damage thresholds.
Resources & Downloads
Literature
Nano-Texture Optics(273.9 kB, PDF)
Other
SPX503RAR.L_ROHS2-2021.pdf(281.8 kB, PDF)
