Plano-Convex Lens, Fused Silica, 50.8 mm, 250 mm EFL, 430-700 nm

The SPX052AR.14 Fused Silica Plano-Convex Lens is a 430 to 700 nm anti-reflection coated, 2 inch (50.8 mm) diameter, fused silica plano-convex lens with an effective focal length of 250 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport's UV grade fused silica precision plano-convex lenses are polished to tight tolerances using master test plates to ensure minimum wavefront distortion. UV grade fused silica will not fluoresce under UV light and is resistant to radiation. And for high-energy applications, the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage.

Specifications

Technical Specs

Lens Shape
Plano-Convex
Diameter
50.8 mm
Lens Material
UV Fused Silica
Antireflection Coating

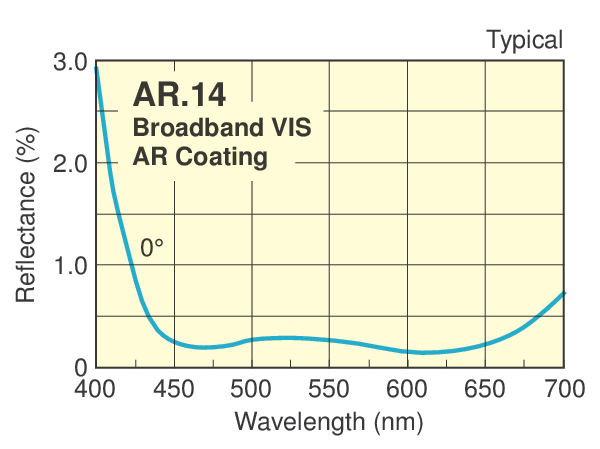

430-700 nm
Coating Type
Visible Multilayer
Coating Code
AR.14
Damage Threshold
7.5 J/cm², 10 ns pulses, 10 Hz at 532 nm
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/2
Surface Accuracy, Irregularity
λ/8
Surface Accuracy, Power
1.5 λ
F/#
4.9
Effective Focal Length (EFL)
250 mm
Back Focal Length (BFL)
245.99 mm
Radius of Curvature (R)
114.750 mm

Edge Thickness (Te)
3.0 mm
Center Thickness (Tc)
5.846 mm
Principal Plane 2 (P2)
-4.00 mm
Design Wavelength
589 nm
Centration
≤3 arc min
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Focal Length Tolerance
±1 %
Diameter Tolerance
+0/-0.1 mm
Center Thickness Tolerance
±0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics

Lens Shape
Plano-Convex
Diameter
50.8 mm
Lens Material
UV Fused Silica
Antireflection Coating
430-700 nm
Coating Type
Visible Multilayer
Coating Code
AR.14
Damage Threshold
7.5 J/cm², 10 ns pulses, 10 Hz at 532 nm
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/2
Surface Accuracy, Irregularity
λ/8
Surface Accuracy, Power
1.5 λ
F/#
4.9
Effective Focal Length (EFL)
250 mm
Back Focal Length (BFL)
245.99 mm
Radius of Curvature (R)
114.750 mm

Edge Thickness (Te)
3.0 mm
Center Thickness (Tc)
5.846 mm
Principal Plane 2 (P2)
-4.00 mm
Design Wavelength
589 nm
Centration
≤3 arc min
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Focal Length Tolerance
±1 %
Diameter Tolerance
+0/-0.1 mm
Center Thickness Tolerance
±0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics

Resources & Downloads

Related Products

Compatible

Description	Compatibility	Avail.	Price
LCM-2Lens Mount, Self-Centering, 0.125-2.375 in. Diameter Lenses	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$305
VLH-3AV-Groove Lens Holder, 0.60 to 3.60 in. Diameter Lenses	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$180
LP-2APrecision Lens Positioner, 2.0 in., 100 TPI XYθXθY, 80 TPI Z	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,110
AC-2AVariable Size Lens Mount, 17.8-57.1 mm, Thumbscrew Support Arms	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$78

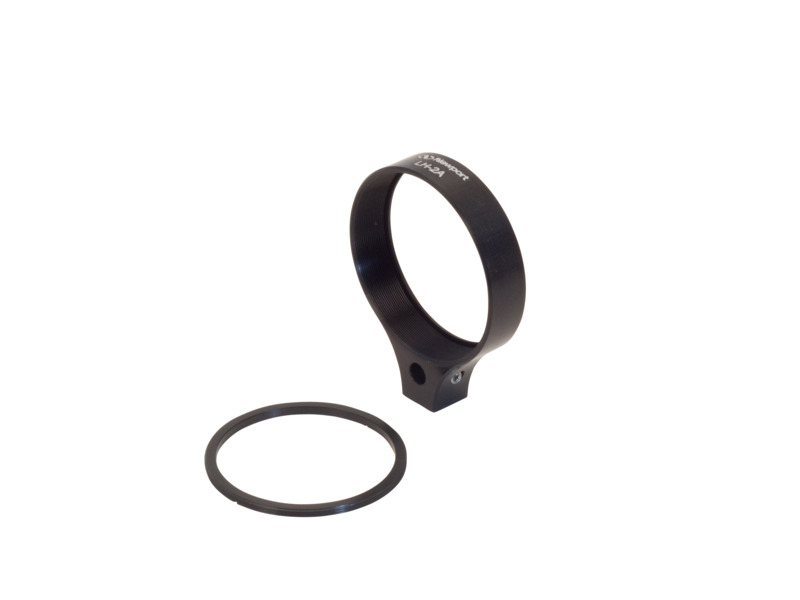

LH-2AFixed Lens Mount, 2.0 in. (50.8 mm), 8-32 Thread, A-LINE	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$37

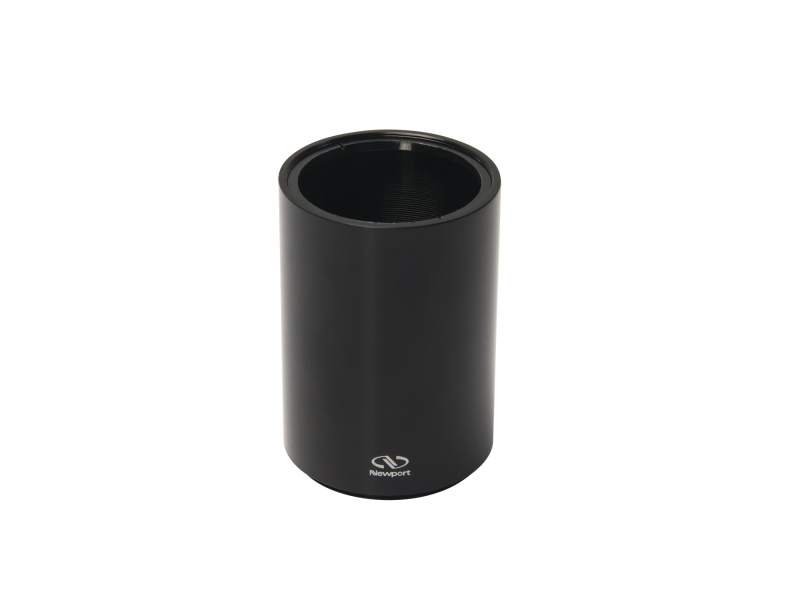

LT20-30Lens Tube, 2 inch dia. LT Series, 3 inch length	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$48
