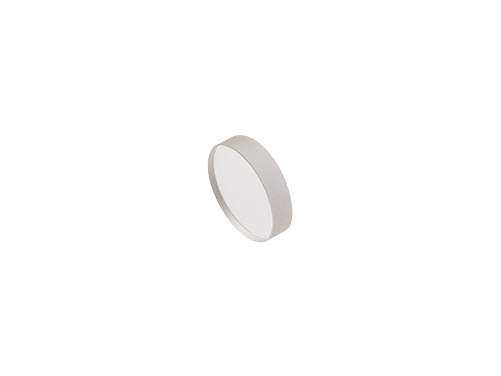

Plano-Convex Lens, Fused Silica, 12.7 mm, 19.0 mm EFL, 1064 nm

The SPX012AR.33 Fused Silica Plano-Convex Lens is a 1064 nm anti-reflection coated, 1/2 inch (12.7 mm) diameter, fused silica plano-convex lens with an effective focal length of 19.0 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport's UV grade fused silica precision plano-convex lenses are polished to tight tolerances using master test plates to ensure minimum wavefront distortion. UV grade fused silica will not fluoresce under UV light and is resistant to radiation. And for high-energy applications, the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage.

Specifications

Technical Specs

Lens Shape
Plano-Convex
Diameter
12.7 mm
Lens Material
UV Fused Silica
Antireflection Coating
1064 nm
Coating Type
V-Coat Multilayer
Coating Code
AR.33
Damage Threshold
12 J/cm² for 10 ns pulses, 10 Hz @ 1064 nm
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/2
Surface Accuracy, Irregularity
λ/8
Surface Accuracy, Power
1.5 λ
F/#
1.5
Effective Focal Length (EFL)
19.0 mm
Back Focal Length (BFL)
15.06 mm
Radius of Curvature (R)
8.710 mm

Edge Thickness (Te)
3.0 mm
Center Thickness (Tc)
5.750 mm
Principal Plane 2 (P2)
-3.94 mm
Design Wavelength
589 nm
Centration
≤3 arc min
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Focal Length Tolerance
±1 %
Diameter Tolerance
+0/-0.1 mm
Center Thickness Tolerance
±0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics

Lens Shape
Plano-Convex
Diameter
12.7 mm
Lens Material
UV Fused Silica
Antireflection Coating
1064 nm
Coating Type
V-Coat Multilayer
Coating Code
AR.33
Damage Threshold
12 J/cm² for 10 ns pulses, 10 Hz @ 1064 nm
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/2
Surface Accuracy, Irregularity
λ/8
Surface Accuracy, Power
1.5 λ
F/#
1.5
Effective Focal Length (EFL)
19.0 mm
Back Focal Length (BFL)
15.06 mm
Radius of Curvature (R)
8.710 mm

Edge Thickness (Te)
3.0 mm
Center Thickness (Tc)
5.750 mm
Principal Plane 2 (P2)
-3.94 mm
Design Wavelength
589 nm
Centration
≤3 arc min
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Focal Length Tolerance
±1 %
Diameter Tolerance
+0/-0.1 mm
Center Thickness Tolerance
±0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics

Resources & Downloads

Related Products

Compatible

Description	Compatibility	Avail.	Price
VLH-1AV-Groove Lens Holder, 0.25 to 1.25 in. Diameter Lenses	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$164

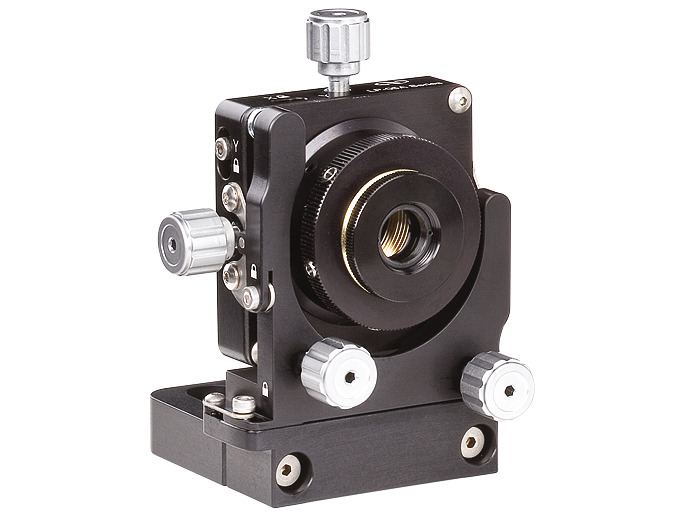

LP-05APrecision Lens Positioner, 0.5 in., 100 TPI XYθXθY, 80 TPI Z	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$764
AC-1AVariable Size Lens Mount, 5.0-46.2 mm, Thumbscrew Support Arms	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$59
LCM-1Lens Mount, Self-Centering, 0.125-1.063 in. Diameter Lenses	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$288

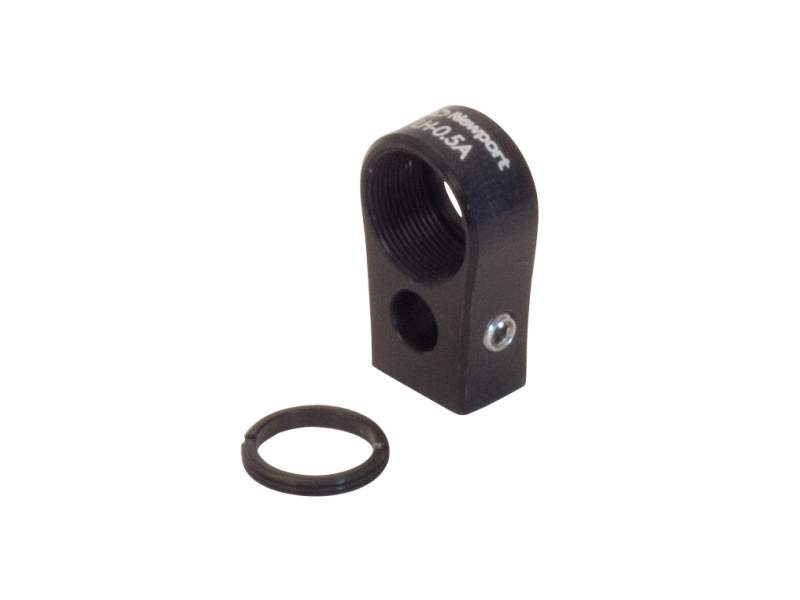

LH-0.5AFixed Lens Mount, 0.50 in. (12.7 mm) Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$20
