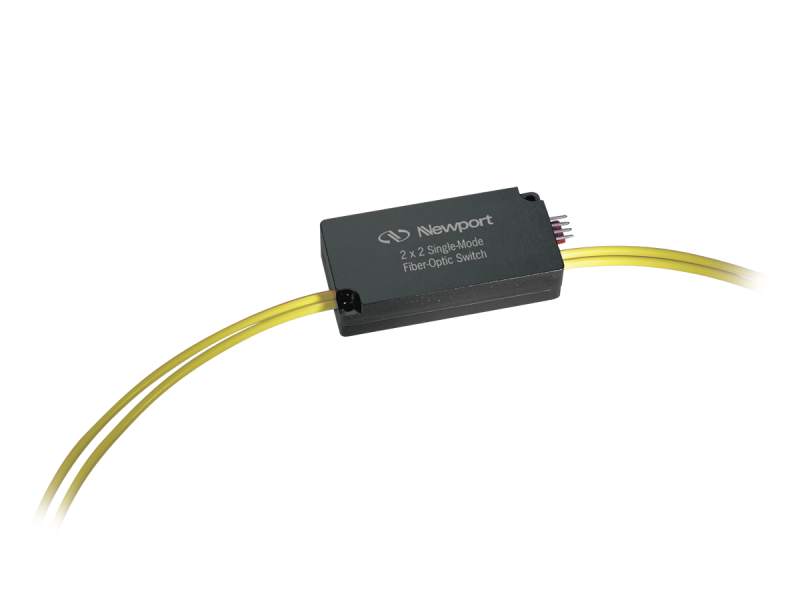

Fiber Optic Switch, Singlemode, 2x2, 9/125 µm Bare Fiber

The Component-Style Fiber Optic Prism Switches offered by Newport are switches that have high durability greater than 10 million cycles) and low insertion loss. The SPSN-9-22 is a single-mode 2 x 2 switch using a moving prism between fixed collimator pairs, which allows bi-directional operation independent of data rate and signal format. 9/125 µm, 1 m long, jacketed bare fiber pigtails are standard.

This 2x2 single-mode switch is a fully reversing optical bypass switch, which is used to insert or bypass nodes in fiber ring networks. These non-blocking, non-latching components require a 5V DC switching voltage. Applications include bypassing of FDDI and SONET network stations, automated and remote fiber test systems.
