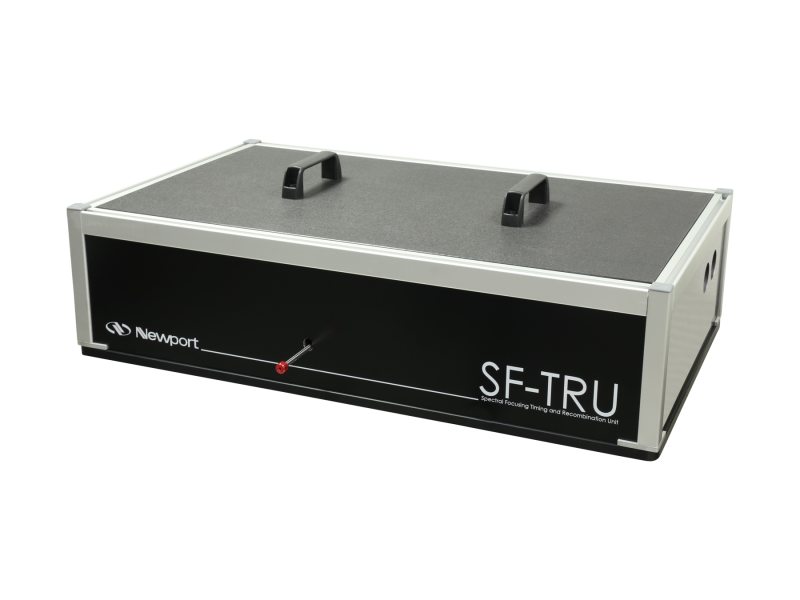

Timing and Recombination Unit, Spectral Focusing, Dual Output Laser Sources

Technical Specs

  • Fixed Beam Wavelength
    1045 nm
  • Single Beam Tunable Range
    790-910 nm
  • Dual Beam Tunable Range
    790-910 nm
  • Fixed Beam Pulse Width
    2.2-4.4 ps
  • Tunable Beam Pulse Width
    3.5-7.5 ps
  • Fixed Beam Group Delay Dispersion Range
    -160,000 to -320,000 fs2
  • Tunable Beam Group Delay Dispersion Range
    -150,000 to -200,000 fs2 @ 800 nm
    -240,000 to -320,000 fs2 @ 900 nm
  • Raman shift for CARS, SRS
    1300-3200 cm-1
  • Attenuation Range
    0 to 2 OD
Notes:

Specifications are shown only for the ps regime of SF-TRU operation (spectral focusing with grating pairs). For complete specifications, please check out SF-TRU Specifications.
