Lens Mount, M55 x 0.75, 32.5 mm Optical Axis Height, 4-40 & 1/4-20

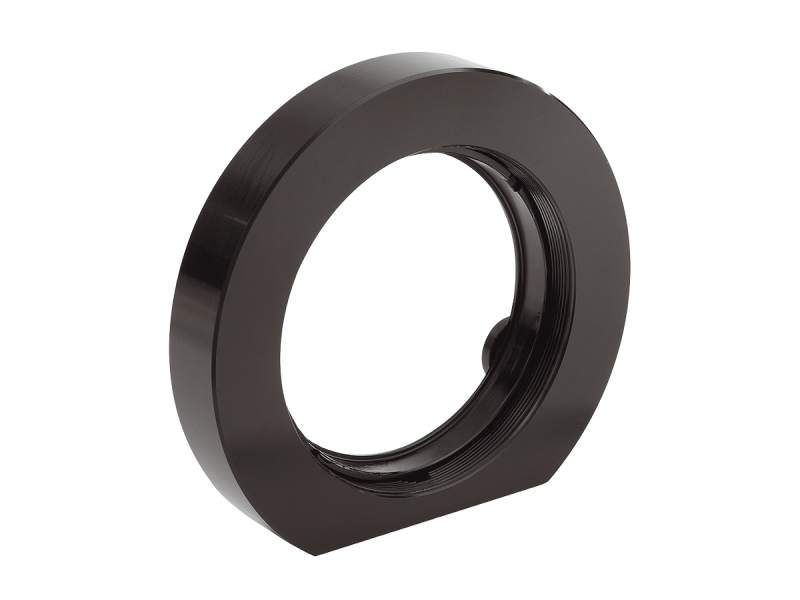

The SB32.50 Lens Barrel Holder is available to mount B.50.8 Series (50.8 mm) Lens Barrels on a post or in the X26 rail system. The standard optical axis height for SB32 is 32.5 mm. These holders can be directly fixed to the CN26 Carriers and will have a 40 mm center height above the rail. The SB32.50 is delivered with three screws, three washers, and a retaining ring that permits direct assembly of mirrors and other optics. It has M55 x 0.75 thread.
