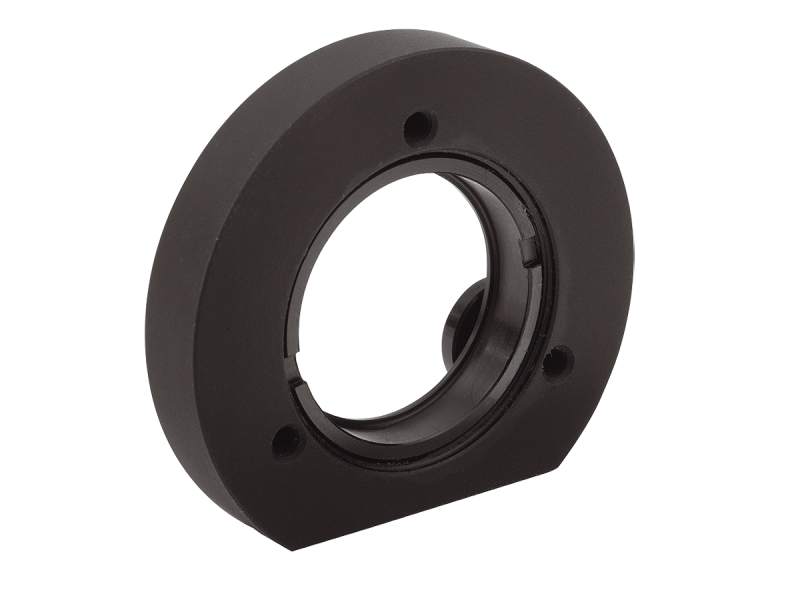

Lens Mount, M30 x 0.75, 19.5 mm Optical Axis Height, 4-40 & 1/4-20

Model: SB19.25.4

$230

Show

Compare

Add to List

Product Series Overview

26 mm Optical Rail Mounts

The SB19.25.4 Lens Barrel Holder is available to mount B25.4 Series (25.4 mm) Lens Barrels or mirrors on a post or in the X26 rail system. The standard optical axis height for SB19 is 19.5 mm. These holders should be mounted to UMR5 Series Linear Stages on top of CN26 Carriers to maintain the normal 40 mm optical axis height of the X26 rail system. The SB19.25.4 is delivered with three screws, three washers, and a retaining ring that permits direct assembly of mirrors and other optics. It has M30 x 0.75 thread.

Specifications

Technical Specs

Type

Lens Mount
Thread Type

M30 x 0.75
Optical Axis Height

19.5 mm

Mounting Threads

4-40 & 1/4-20

Type

Lens Mount
Thread Type

M30 x 0.75
Optical Axis Height

19.5 mm

Mounting Threads

4-40 & 1/4-20

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SBSERIES DWG-S (105.7 kB, PDF)
SBMOUNTS.ONR-S (100.1 kB, PDF)
