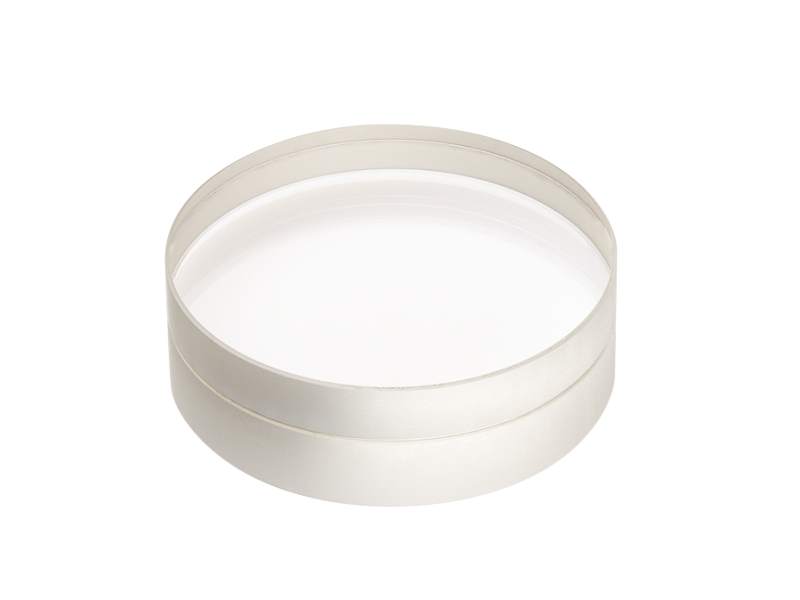

Achromatic Doublet Lens, Visible, 76.2 mm, 750 mm EFL, 430-700 nm

Model: PAC097AR.14

$466

In Stock

Compare

Product Series Overview

Visible Achromatic Lenses

The PAC097AR.14 Visible Achromatic Doublet Lens is a 430 to 700 nm antireflection coated, 3 inch (76.2 mm) diameter, N-BK7 and N-SF5 precision achromatic doublet lens with an effective focal length of 750 mm. This achromat is computer designed to effectively minimize spherical aberration and coma when operating at infinite conjugate ratio, yielding smaller focused spot sizes. Unlike singlet lenses, this results in a constant focal length independent of aperture and far better off-axis performance. Achromats are superior to singlet lenses for monochromatic applications at any visible wavelength.

Specifications

Technical Specs

Lens Type
Achromatic Doublet
Lens Shape
Plano-Convex
Diameter
76.2 mm
Antireflection Coating
430-700 nm
Coating Type
Visible Multilayer
Coating Code
AR.14
Damage Threshold
1.0 J/cm² @ 1064 nm, 10 ns , 10 Hz
Transmission
T>97%
Lens Material
N-BK7/N-SF5
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4
Surface Accuracy, Power
1.5 λ
Effective Focal Length (EFL)
750 mm
Back Focal Length (BFL)
741.8 mm
F/#
9.8
Radius of Curvature (R)
455.878 mm

Radius 2
-336.756 mm
Radius 3
-1010.204 mm
Edge Thickness (Te)
15.2 mm
Center Thickness (Tc)
17.5 mm
Thickness, Center 1
11.0 mm
Thickness, Center 2
6.5 mm
Orientation
Steepest convex surface should face the infinite conjugate
Design Wavelengths
589 nm
Centration
≤3 arc min
Diameter Tolerance
+0/-0.1 mm
Focal Length Tolerance
±2.0%
Center Thickness Tolerance
±0.4 mm
Clear Aperture
90% of central diameter
Cleaning
See How to Clean Optics

Lens Type
Achromatic Doublet
Lens Shape
Plano-Convex
Diameter
76.2 mm
Antireflection Coating
430-700 nm
Coating Type
Visible Multilayer
Coating Code
AR.14
Damage Threshold
1.0 J/cm² @ 1064 nm, 10 ns , 10 Hz
Transmission
T>97%
Lens Material
N-BK7/N-SF5
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4
Surface Accuracy, Power
1.5 λ
Effective Focal Length (EFL)
750 mm
Back Focal Length (BFL)
741.8 mm
F/#
9.8
Radius of Curvature (R)
455.878 mm

Radius 2
-336.756 mm
Radius 3
-1010.204 mm
Edge Thickness (Te)
15.2 mm
Center Thickness (Tc)
17.5 mm
Thickness, Center 1
11.0 mm
Thickness, Center 2
6.5 mm
Orientation
Steepest convex surface should face the infinite conjugate
Design Wavelengths
589 nm
Centration
≤3 arc min
Diameter Tolerance
+0/-0.1 mm
Focal Length Tolerance
±2.0%
Center Thickness Tolerance
±0.4 mm
Clear Aperture
90% of central diameter
Cleaning
See How to Clean Optics
