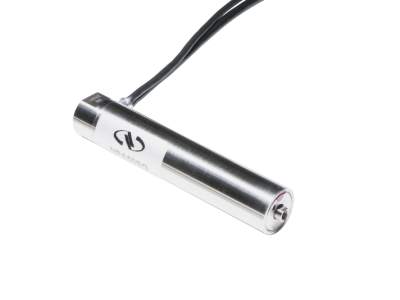

Piezo Stack Actuator, 0.05 mm Travel Range, Vacuum, Strain-gauge

Technical Specs

  • Travel Range
    0.05 mm
  • Axial Load Capacity
    1000 N
  • Load Capacity, Pull
    150 N
  • Axial Stiffness
    20 N/µm
  • Capacitance
    5.4 µF
  • Resonant Frequency
    8000 Hz
  • Cable Length
    2 m
  • Closed Loop Repeatability
    20 nm
  • Closed Loop Resolution
    1.0 nm
  • Open Loop Resolution
    0.1 nm
  • Closed Loop Travel Range
    40 µm
  • Vacuum Compatibility
    10-6 hPa
