HeNe Laser, Green, 543 nm, 1.0 mW, 500:1 Polarization, CE

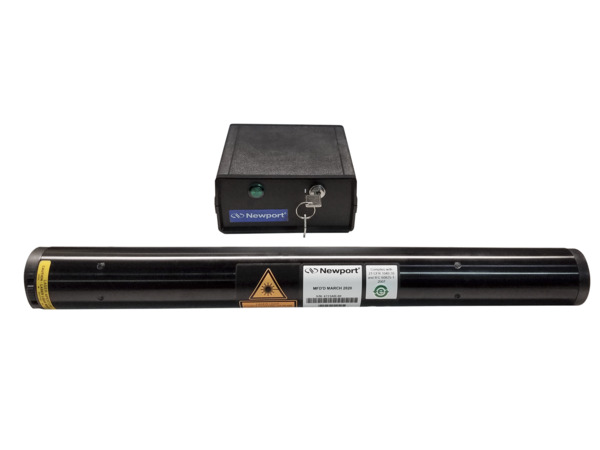

The N-LGP-193 Green HeNe Laser generates a 500:1 linearly polarized output of 1.0 mW (minimum) at 543 nm. Longitudinal mode spacing is approximately 320 MHz with the spectral bandwidth being approximately 1630 MHz (FWHM). Utilizing enhanced designs and superior optical components these HeNe lasers deliver unsurpassed operational stability and lifetimes. The mirror quality and performances are optimized to result in the highest quality HeNe lasers available in the market. These high-performance lasers are supported by a one-year warranty and are available off-the-shelf. CE compliant, IEC Class 3R.The power supply is included. A spare or replacement laser head or power supply can be purchased seperately off-line. The laser head model is N-LGP-193-H, and the power supply model is N6-LPL-903-065.

543 nm Output Power from 0.5 mW to 2.0 mW

We offer green HeNe lasers with output power levels ranging from 0.5 mW to 2.0 mW. The power supply is included with the green HeNe laser head.

HeNe Laser Mounting

ULM Series cylindrical laser mounts attach to 340-RC and 370-RC rod clamps and provide a convenient way to attach these HeNe lasers to Newport stages, tables, or breadboards. For N-LGP and N-LGR series, please mount the laser at either end of the body indicated by shading.

Random or 500:1 Polarization

We have models whose outputs are either polarized or randomly polarized. Due to the random fluctuation of the polarization state of the beam, it is not recommended to use a polarizer with a random polarization laser for applications where polarized light is required. The laser with the polarized output has a vertical polarization direction, when the shutter control is shown at the top.

Optimized Cavity Mirror Performance

Utilizing enhanced designs and superior optical components these lasers deliver unsurpassed operational stability and lifetimes. The mirror quality and performances are optimized to result in the highest quality HeNe lasers available in the market. These high-performance lasers are supported by a one-year warranty and are available off-the-shelf.

HeNe Laser Advantages

HeNe Lasers use a mixture of Helium and Neon gas as the gain medium excited by an electrical discharge. Helium Neon gas lasers are based on a mature and well understood technology that offers a cost effective laser source with fundamental Gaussian beam quality, and ease of use. Green HeNe lasers offer a stable optical output over lifetimes greater than 10,000 hours and are insensitive to optical feedback.

Applications

Alignment
Metrology
Velocimetry
Cytometry
Confocal microscopy
DNA micro array analysis

Specifications

Technical Specs

Operating Wavelength
543.5 nm
Polarization
500:1
Output Power
1.0 mW
Longitudinal Mode
320 MHz
Beam Diameter (1/e<sup>2</sup>)
0.86 mm
Beam Divergence Full Angle
0.81 mrad
Beam Drift, Long Term
<0.03 mrad
CDRH Class
IIIa

Size
510.3 x Ø44.2 mm
Noise
<2.8% P-P
Spatial Mode
>90% TEM₀₀
Power Requirements
120/240 VAC 50/60 Hz
Power Supply Size
160.8 x 53.9 x 241.3 mm

Operating Wavelength
543.5 nm
Polarization
500:1
Output Power
1.0 mW
Longitudinal Mode
320 MHz
Beam Diameter (1/e<sup>2</sup>)
0.86 mm
Beam Divergence Full Angle
0.81 mrad
Beam Drift, Long Term
<0.03 mrad
CDRH Class
IIIa

Size
510.3 x Ø44.2 mm
Noise
<2.8% P-P
Spatial Mode
>90% TEM₀₀
Power Requirements
120/240 VAC 50/60 Hz
Power Supply Size
160.8 x 53.9 x 241.3 mm

Resources & Downloads

Related Products

Compatible

Description	Compatibility	Avail.	Price

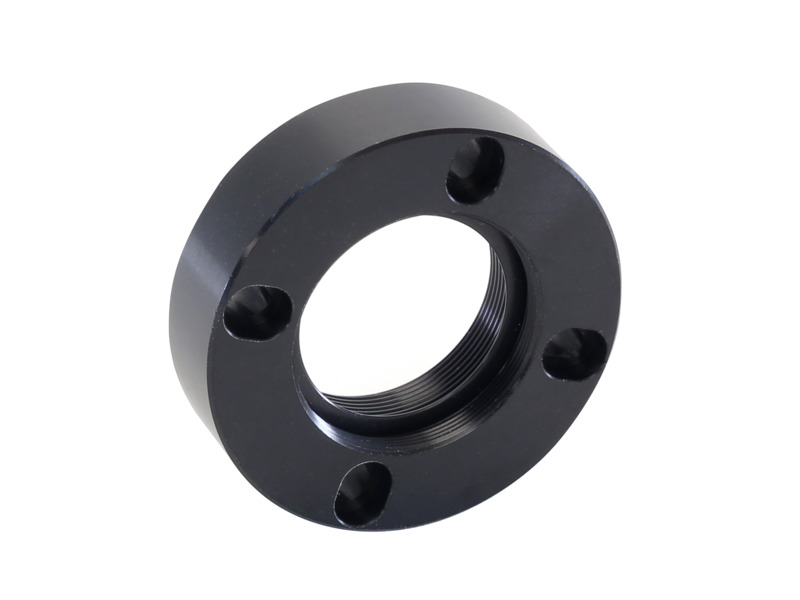

HENE-ADPTHeNe Laser Adapter, SM1 and C-Mount Thread	UNIVERSAL		$90
ULMCylindrical Laser Mount, 1.0-1.75 in. Diameter, Fixed	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$143
ULM-TILTCylindrical Laser Mount, 1.0-1.75 in., High-Resolution AJS Adjusters	UNIVERSAL	Contact Us	$379

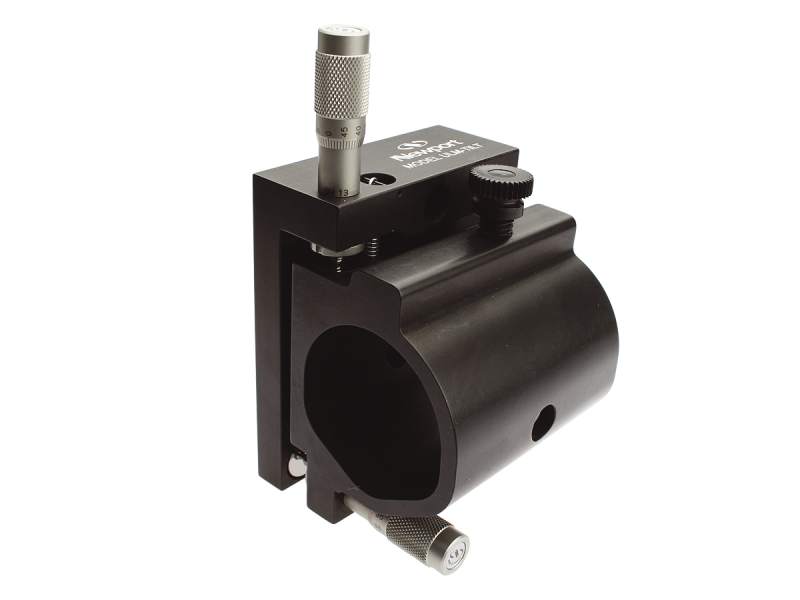

ULM-TILT-MCylindrical Laser Mount, 1.0-1.75 in. Diameter, SM-13 Micrometers	UNIVERSAL		$516
