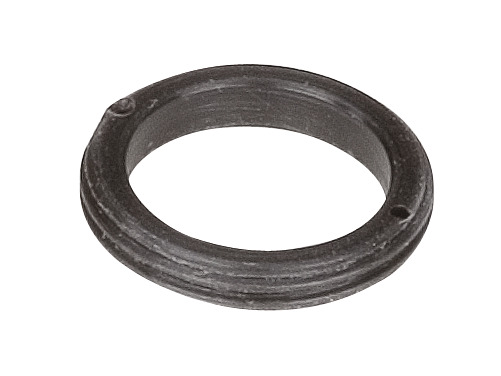

Retaining Ring, 10.1 mm ID, 0.546-32 Thread
Retaining Ring, 10.1 mm ID, 0.546-32 Thread
Model: MLH-0.5-RR
Product Series Overview
Adaptors and Retaining RingsThe MLH-0.5-RR Retaining Ring had a 10.1 mm inner diameter and 0.546-32 thread. It is for the MT-RS, LH1-05R, LPLH-50T and MLH-0.5.
Specifications
- TypeRetaining Ring
- Thread Type0.546-32
- MaterialDelrin
- Inside Diameter10.1 mm
Resources & Downloads
3D Product Models
Other
MLH-0.5-RR RoHS Certificate(279.5 kB, PDF) MLH-0-5-RR_RoHS2021.pdf(688 kB, PDF)
2D Product Drawings
retaining rings dwg.pdf(93.7 kB, PDF)
