Sorry, this product is no longer offered for sale. It was discontinued on Jan 26, 2024The recommended replacement product is OMK33.
Optical Posts and Bases Set, Includes Cabinet
The MK-3 Post and Base Set is a combination of the most popular models and sizes, ideal for most projects and experiments. Both fixed height pedestal posts and variable height posts, and post holders, are included for maximum flexibility and utility. Our stainless steel bases and clamps provide added stability. A storage cabinet and labels are included.

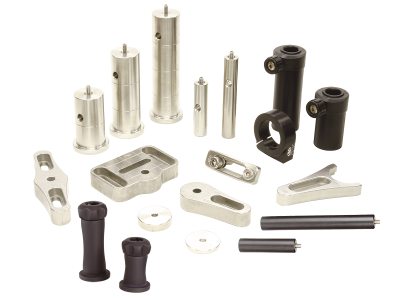

MK-3 Kit Contents
| Qty | Part Number | Description |
|---|---|---|
| 1 | Cabinet with plastic drawers | |
| 2 | Slotted Base, 0.68 in. Range Single Slot, Stainless Steel | |
| 2 | Double Slotted Base, 0.68 in. Range, Stainless Steel | |
| 2 | Double-Slotted Base, Stainless Steel, XY, 1.0 in. Range | |
| 3 | Base Clamp, Adjustable-Height, Short, 1/4-20 Tapped Holes | |
| 4 | Pedestal Spacer, 0.125 in. Thick, 1 in. Diameter Posts, 8-32 (M4) CLR | |
| 4 | Pedestal Spacer, 0.25 in. Thick, 1 in. Diameter Posts, 8-32 (M4) CLR | |
| 5 | Optical Pedestal, 2.0 in. Height, 1.0 in. Diameter, 8-32 Thread | |
| 3 | Optical Pedestal, 3.0 in. Height, 1.0 in. Diameter, 8-32 Thread | |
| 2 | Optical Pedestal, 4.0 in. Height, 1.0 in. Diameter, 8-32 Thread | |
| 12 | Clamping Fork, 1.0 in. Diameter Pedestals, 1/4-20 (M6) Slot | |
| 2 | Post Clamp, Sliding, 1.0 in. Diameter Posts, 8-32 Thread | |
| 2 | Optical Post, 2.0 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread | |
| 2 | Optical Post, 3.0 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread | |
| 1 | Optical Mounting Post, 2.0 in., 0.5 in. Dia. Composite, 8/32 & 1/4-20 | |
| 1 | Optical Mounting Post, 3.0 in., 0.5 in. Dia. Composite, 8/32 & 1/4-20 | |
| 2 | Optical Post Holder, No Slip, 2.0 in. Height, 0.5 in. Posts, 1/4-20 | |
| 2 | Optical Post Holder, No Slip, 3.0 in. Height, 0.5 in. Posts, 1/4-20 | |
| 1 | Optical Post Holder, Composite, 2.0 in. Height, Pedestal Base | |
| 1 | Optical Post Holder, Composite, 3.0 in. Height, Pedestal Base |
Specifications
- TypePost and Base Set
- Thread TypeImperial
Resources & Downloads
Other
MK-3 RoHS Certificate(278 kB, PDF)
