Optical Table, Non Magnetic, 1200 x 3600 mm, 305 mm Thick, M6 Threads
Optical Table, Non Magnetic, 1200 x 3600 mm, 305 mm Thick, M6 Threads
Model: M-RPR-N-412-12
Product Series Overview

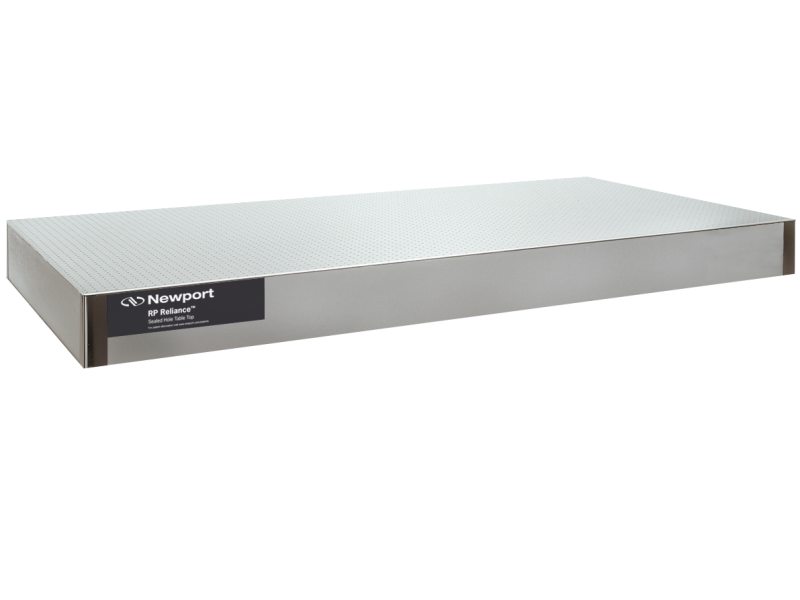

RPR Non-Magnetic Optical Table TopsThe M-RPR-N-412-12 non-magnetic RPR-N Reliance™ Industrial and Educational Grade Optical Table features the material workmanship and quality found in all Newport tables and meets many non -magnetic application needs. The top and bottom skins as well as the trussed honeycomb core are constructed from non-magnetic 316 series stainless steel. This 305 mm thick optical table has a 1200 mm width, a 3600 mm length, and Metric M6 holes on a 25 mm grid. RPR-N Series tables offer the same dynamic performance, static rigidity, and thermal stability capabilities as the RPR Series. The RPR-N is an ideal solution for supporting large vacuum chambers or other heavy instruments used in materials research applications. In extreme applications where it is essential that all magnetic materials be removed the RPR-N Series is the best choice due to its 316 non-magnetic stainless steel construction.
Resources & Downloads
Manuals
Optical Table Pre-installation Checklist(3.7 MB, PDF)
2D Product Drawings
Leg Location And Mounting Dimensions(102.7 kB, PDF)
Related Products
Supporting
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

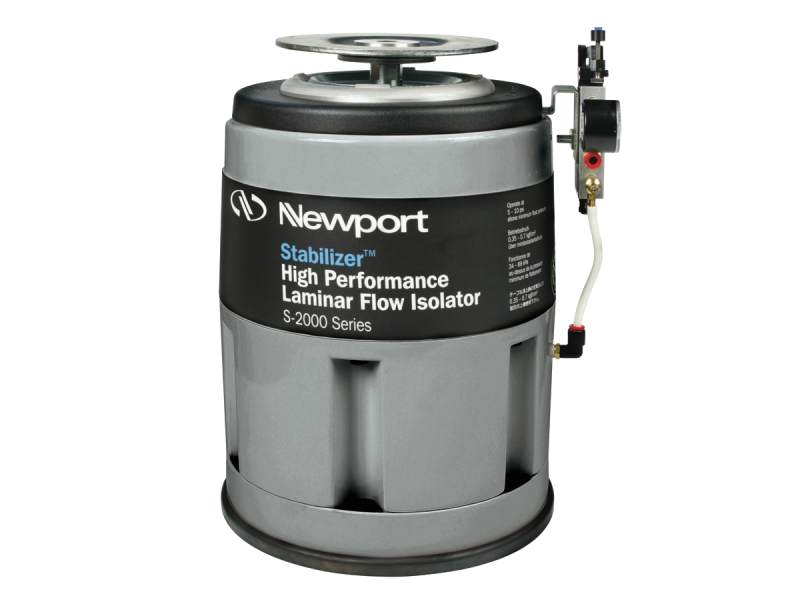

 | S-2000AN-423.5Vibration Isolator Set, S-2000AN Non-Magnetic, 23.5 in. tall, Qty 4 | 1 Week |
