Sorry, this product is no longer offered for sale. It was discontinued on Feb 16, 2024The recommended replacement product is M-OMK16.
Posts and Accessories Primer Kit, Metric Components

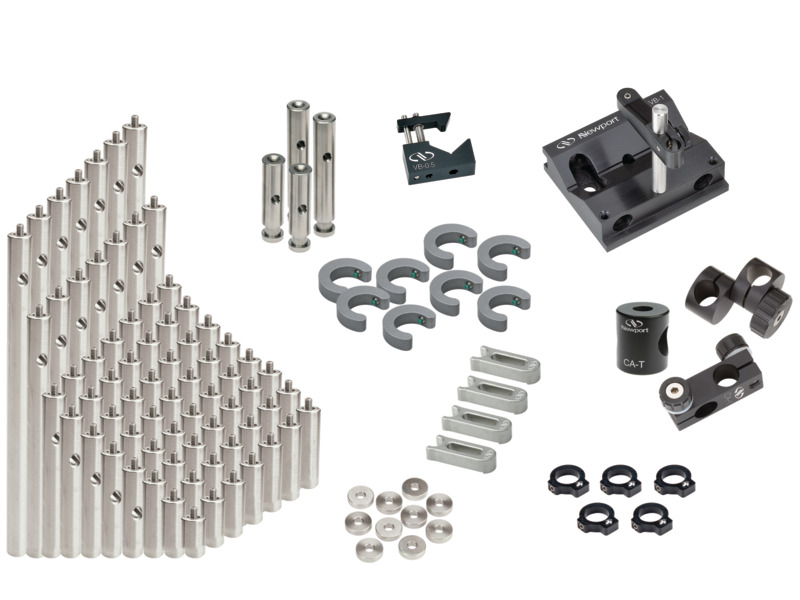

The M-PT-PK Posts and Accessories Primer Kit contains 10 each of our most popular standard 12.7 mm diameter posts and includes the new half-size lengths. Right angle clamps, swivel clamps, bases, collars and V-groove mounts are included so that most mounting orientations may be achieved. 0.5 in. pedestal posts are provided with precision spacers and fork clamps for fixed-height mounting. This 118 piece kit, ideal for new labs, includes a free 9 drawer cabinet for organized parts storage.
| Qty | Part Number | Description |
|---|---|---|
| 1 | Cabinet with plastic drawers | |
| 1 | Indexing Post Collar Pack, 0.5 in. Optical Posts, Qty 5 | |
| 10 | Post Collar, 0.5 in. Diameter Optical Posts | |
| 10 | Optical Post Clamp, Right-Angle, 0.5 in. Diameter Optical Posts | |
| 3 | Optical Post Clamp, Adjustable Angle, 0.5 in. Diameter Optical Posts | |
| 3 | Optical Post End Clamp, Right-Angle, 0.5 in. Post, 8-32 (M4) CLR | |
| 10 | Post Holder Base, Slim, Open Slot, 6.35 mm Thick, M6 | |
| 10 | Optical Post, 25.4 mm Height, 12.7 mm Diameter, M4 and M6 Threads | |
| 2 | Optical Post, 38.1 mm Height, 12.7 mm Diameter, M4 and M6 Threads | |
| 10 | Optical Post, 50.8 mm Height, 12.7 mm Diameter, M4 and M6 Threads | |
| 2 | Optical Post, 63.5 mm Height, 12.7 mm Diameter, M4 and M6 Threads | |
| 2 | Optical Pedestal, Magnetic Base, 50.8 mm Height, 12.7 mm Diameter, M4 Thread | |
| 10 | Optical Post, 76.2 mm Height, 12.7 mm Diameter, M4 and M6 Threads | |
| 2 | Optical Post, 88.9 mm Height, 12.7 mm Diameter, M4 and M6 Threads | |
| 2 | Optical Pedestal, Magnetic Base, 76.2 mm Height, 12.7 mm Diameter, M4 Thread | |
| 10 | Optical Post, 101.6 mm Height, 12.7 mm Diameter, M4 and M6 Threads | |
| 10 | Optical Post, 152.4 mm Height, 12.7 mm Diameter, M4 and M6 Threads | |
| 10 | Optical Post, 203.2 mm Height, 12.7 mm Diameter, M4 and M6 Threads | |
| 1 | Pedestal Spacer Pack, 1/16 in., 0.5 in. Diameter, 8-32 (M4) CLR, Qty 10 | |
| 1 | Pedestal Spacer Pack, 1/8 in., 0.5 in. Diameter, 8-32 (M4) CLR, Qty 10 | |
| 4 | Clamping Fork, 0.5 in. Optical Pedestals, 1/4-20(M6) Slot | |
| 2 | Cylindrical Device Mount, V-Block, 0.5 in. Length | |
| 2 | Cylindrical Device Mount, V-Block, 3 inch (76.2 mm) Length |
