M-PED-PK Pedestal Post Primer Kit

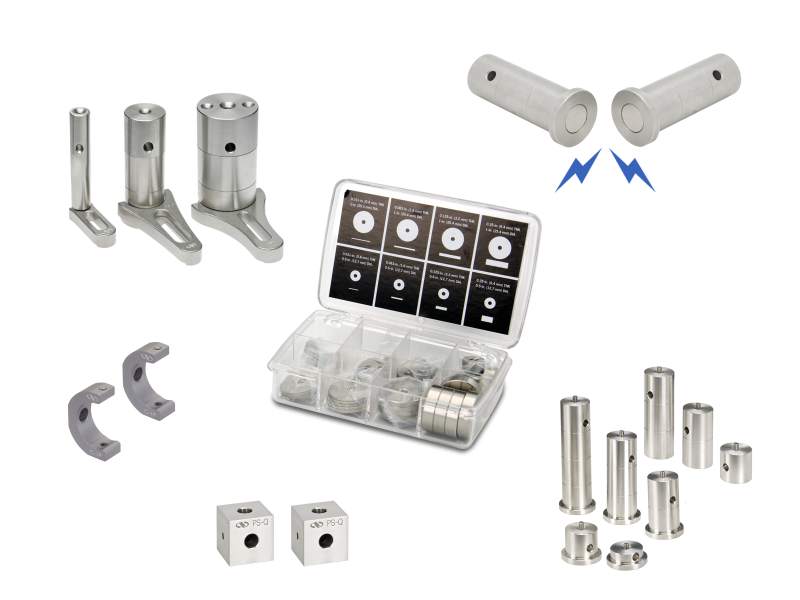

The M-PED-PK Mounting Post Primer Kit offers a cost-saving sample of Newport's latest and most popular pedestal posts. Included in this kit are a sampling of Newport's three different diameter sizes of mounting posts as well as precision spacers, magnetic pedestals and accessories . When you buy this kit, you also get a free 9-drawer storage cabinet with labels to organize and store the mounts. For a detailed list of the components, please see the family page for this kit.

Qty	Part Number	Description
1	45022-01	Cabinet with plastic drawers

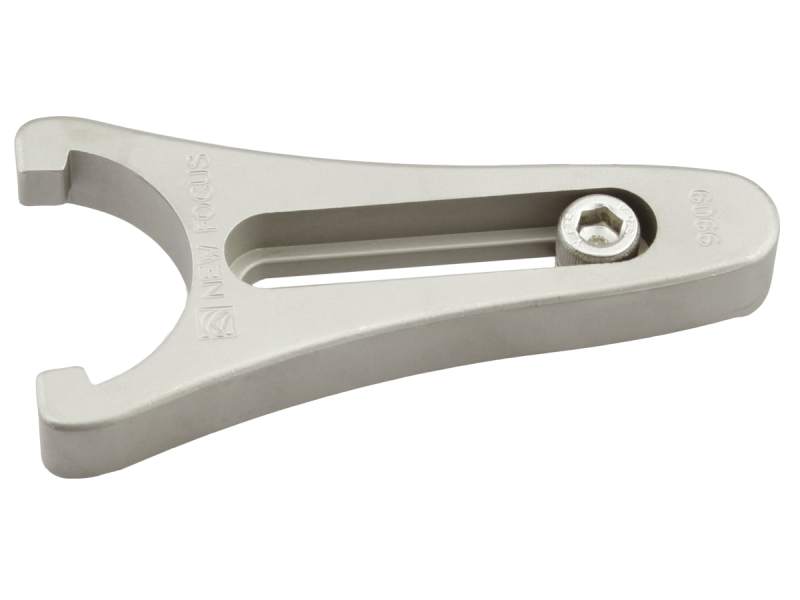

3	9909-M	Clamping Fork, 25.4 mm Diameter Pedestals, Captive M6 Screw, Long Slot
3	9916-M	Clamping Fork, 25.4 mm Diameter Pedestals, Captive M6 Screw, Short Slot
2	M-C-1P	Post C-Clamp, 25.4 mm Diameter Posts, M4 Thread
1	M-PS-0.5Z	Optical Pedestal, Magnetic Base, 12.7 mm Height, 25.4 mm Diameter, M4
1	M-PS-1.5Z	Optical Pedestal, Magnetic Base, 38.1 mm Height, 25.4 mm Diameter, M4
2	M-PS-1E	Optical Post, 25.4 mm Height, 25.4 mm Diameter, M4 Thread
3	M-PS-2	Optical Pedestal, 50.8 mm Height, 25.4 mm Diameter, M4 Thread
2	M-PS-2.5Z	Optical Pedestal, Magnetic Base, 63.5 mm Height, 25.4 mm Diameter, M4
2	M-PS-2E	Optical Post, 50.8 mm Height, 25.4 mm Diameter, M4 Thread
4	M-PS-3	Optical Pedestal, 76.2 mm Height, 25.4 mm Diameter, M4 Thread
2	M-PS-3E	Optical Post, 76.2 mm Height, 25.4 mm Diameter, M4 Thread
2	M-PS-4	Optical Pedestal, 101.6 mm Height, 25.4 mm Diameter, M4 Thread
1	M-SP-2Z	Optical Pedestal, Magnetic Base, 50.8 mm Height, 12.7 mm Diameter, M4 Thread
1	M-SP-3Z	Optical Pedestal, Magnetic Base, 76.2 mm Height, 12.7 mm Diameter, M4 Thread
1	M-SR-2Z	Pedestal Pillar, Magnetic Base, 50.8 mm Height, 38.1 mm Diameter, M6
1	M-SR-3Z	Pedestal Pillar, Magnetic Base, 76.2 mm Height, 38.1 mm Diameter, M6
7	PS-F	Clamping Fork, 1.0 in. Diameter Pedestals, 1/4-20 (M6) Slot
2	PS-Q	Optical Pedestal Cube, 8-32 Mounting Holes
2	SP-F	Clamping Fork, 0.5 in. Optical Pedestals, 1/4-20(M6) Slot
1	SP-KT	Optical Post Kit, Precision Optical Posts, Pedestals, Spacers

Specifications

Technical Specs

Type

Optical Mount Primer Kit
Thread Type

Metric

Type

Optical Mount Primer Kit
Thread Type

Metric
