Modular Riser Plates, 101.6 mm x 101.6 mm x 3.175 mm, M6 Thread

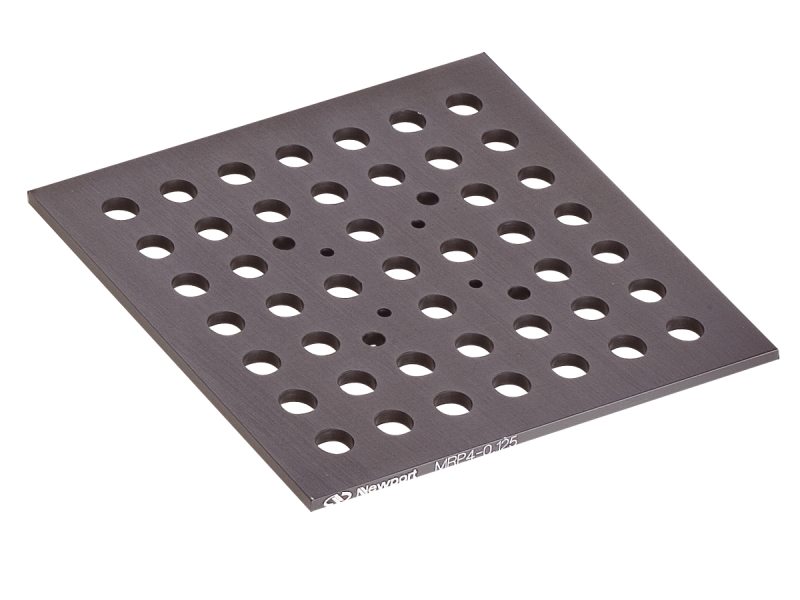

The M-MRP4-0.125 Modular Metric Riser Plate raises the surface of an optical table, allowing components to be securely mounted at a fixed 3.175 mm height. 101.6 x 101.6 mm Modular Riser Plates can be stacked to achieve any height in 3.175 mm increments. Ample M6 threaded holes on the top surface are available to mount components to riser plates. These riser plates can be directly bolted to a table surface or mounted off the hole pattern using base clamps. 0.5 and 1.0 inch (12.7 and 25.4 mm) high versions have a groove around the base for the base clamps.

Specifications

Technical Specs

Type
Riser Plate
Height
3.175 mm
Length
101.6 mm
Width
101.6 mm

Material
Aluminum

Type
Riser Plate
Height
3.175 mm
Length
101.6 mm
Width
101.6 mm

Material
Aluminum

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

MRP4-125-S(137.8 kB, PDF)

Other

M-MRP4-0.125 RoHS Certificate(279.2 kB, PDF)
M-MRP4-0-125-RoHS2021.pdf(686.4 kB, PDF)
