Insertable Link Block, 1/2-in to 1-in, M4, A-LINE

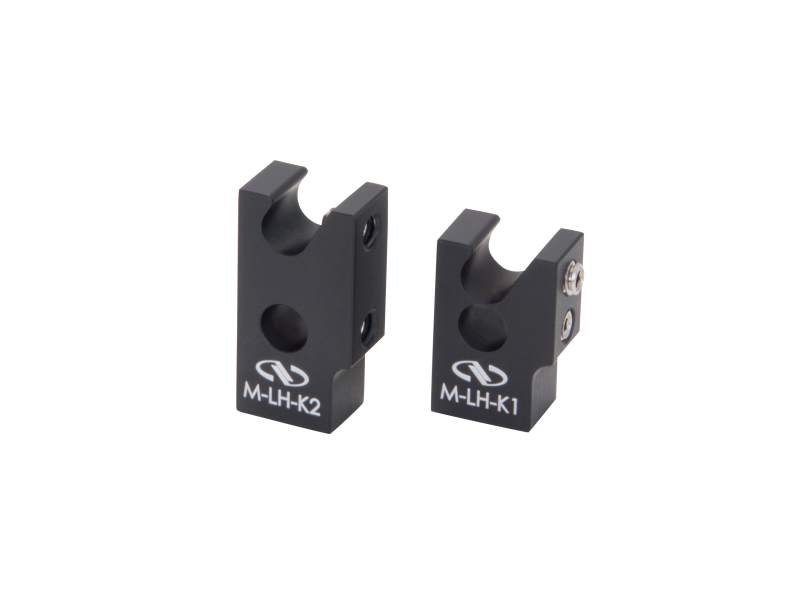

a-line fixed lens mounts with multiple lens mount sizes shown

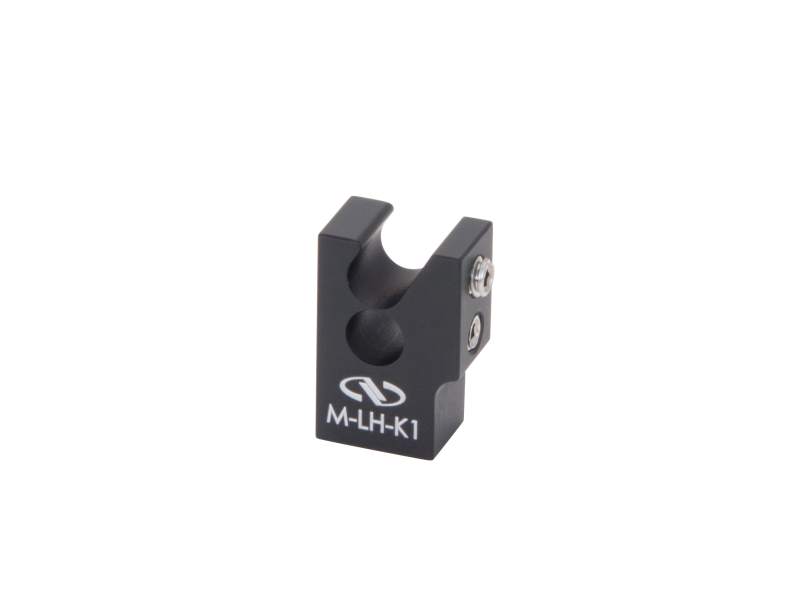

Insertable Link Block, 1/2-in to 1-in, M4, A-LINE

Model: M-LH-K1

$15.60

Show

Compare

Add to List

Product Series Overview

A-Line Keyed Guide Rods

The A-LINE™ M-LH-K1 Insertable Link Block allows the user to align the optical centers of 1/2-in. and 1-in. A-Line lens mounts. The Link Block has two 6-mm alignment holes spaced 0.25-in.(6.4-mm) apart to align the two sizes of lens mounts. It incorporates an M4 threaded mounting hole for post mounting on Metric SP and MSP Series posts. The slotted guide rod hole can also be used as an insertable post mount for guide-rod-mounted group of A-line lens mounts.

Specifications

Technical Specs

Type

Rod Adaptor
Adjustment Type

Fixed
Diameter

6.0 mm

Thread Type

M4

Type

Rod Adaptor
Adjustment Type

Fixed
Diameter

6.0 mm

Thread Type

M4

Resources & Downloads

Other

M-LH-K1_RoHS2021.pdf (687.3 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

LH-K1 DWG (113.5 kB, PDF)
