Lens Mount Pack, Fixed, 25.4 mm Diameter, M4 Thread, Qty 10, A-Line

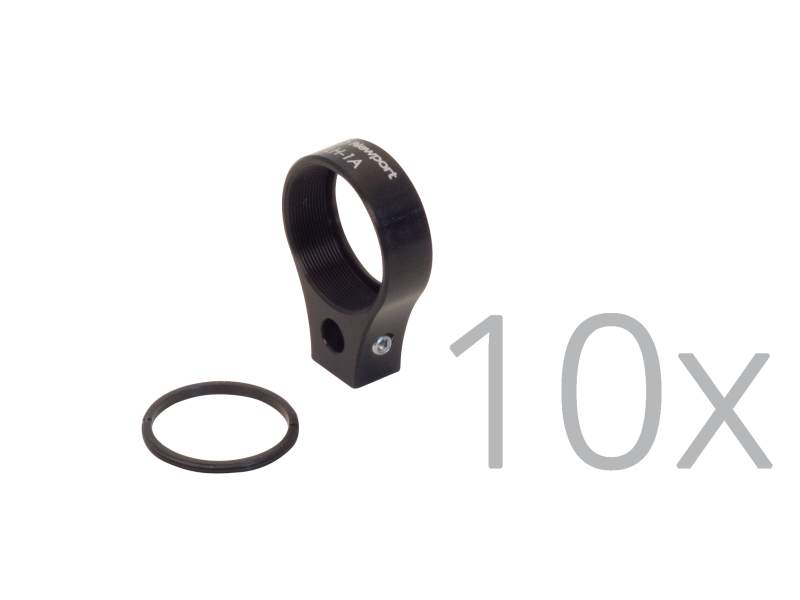

This is a 10-pack of the Fixed Lens Mount. The cost-saving A-LINE™ M-LH-1A Fixed Lens Mount 10 pack is a convenient and economical solution for mounting 1.0 inch (25.4 mm) lenses and beamsplitters. The lens mount consists of a threaded holder with a retaining ring to hold the optic firmly, but gently. The holder incorporates an M4 threaded mounting hole for post mounting on Metric SP and MSP Series posts. The front of the holder also has a special 6 mm alignment hole, which can be used with GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts.

Specifications

Technical Specs

Type
Fixed Lens Mount
Optic Diameter
25.4 mm
Edge Thickness (T<sub>e</sub>)
7 mm
Optical Axis Height
31.8 mm
Adjustments
Fixed

Optic Retaining Thread
1.035‐40
Clear Aperture
22.9 mm
Thread Type
M4

Type
Fixed Lens Mount
Optic Diameter
25.4 mm
Edge Thickness (T<sub>e</sub>)
7 mm
Optical Axis Height
31.8 mm
Adjustments
Fixed

Optic Retaining Thread
1.035‐40
Clear Aperture
22.9 mm
Thread Type
M4

Resources & Downloads

2D Product Drawings

LH-A(128.2 kB, PDF)
