Sample Pack, BPH Post Holders, Metric Posts, Extension Bases & Collars

Model: M-BPH-PK

$134

In Stock

Compare

Add to List

Product Series Overview

Non-Bridging Slotted-Base Optical Post Holders

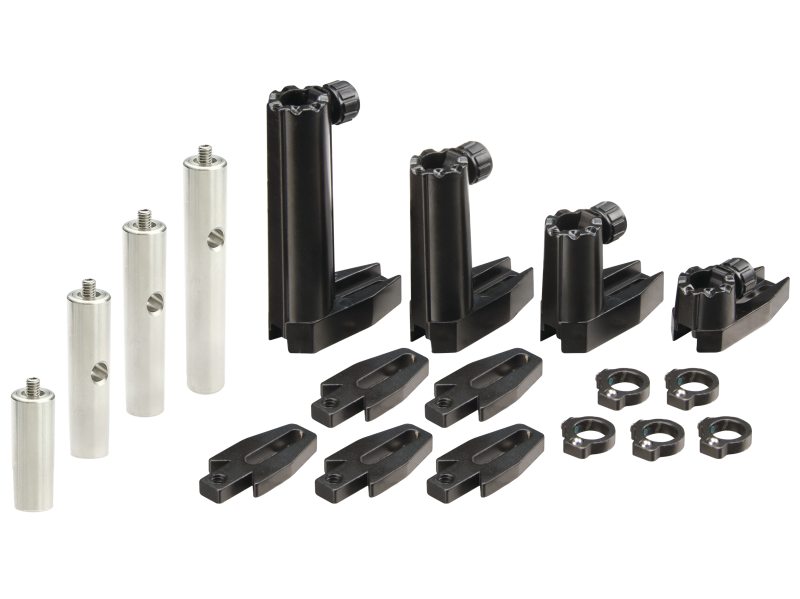

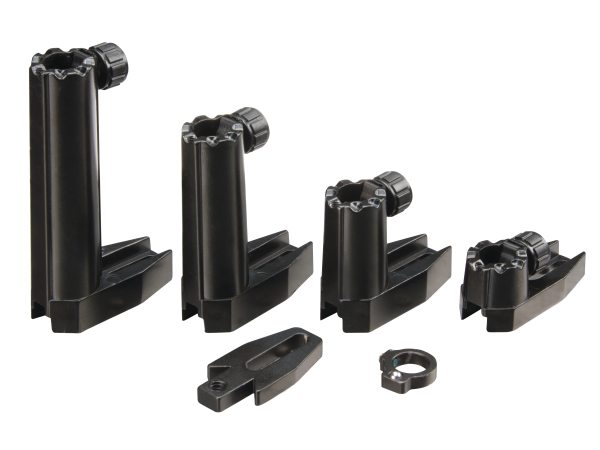

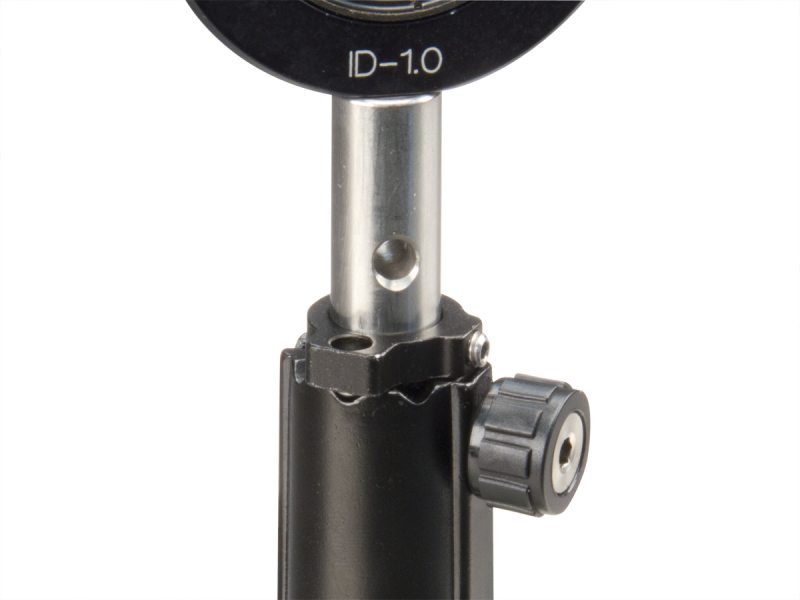

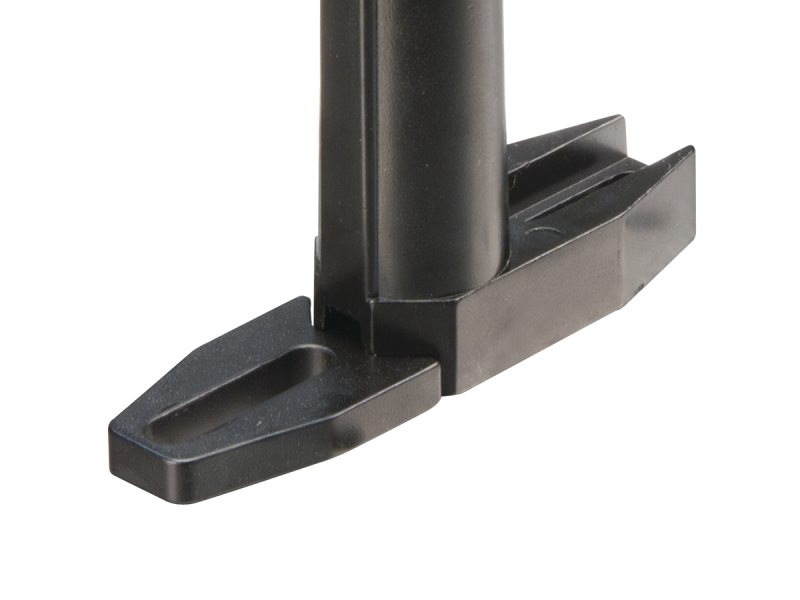

The M-BPH-PK is a cost-saving family pack of the BPH Post Holders. It includes one each of the four BPH post holders: 25.4, 50.8, 76.2, and 101.6 mm tall versions. The pack also includes 12.7 mm M4/M6 threaded posts for each post holder as well as five BPH-XB extension bases and five each BPH-C indexing collars.

Specifications

Technical Specs

Type

Slotted Base Post Holder
Thread Type

1/4-20 (M6) Slot
Material

Cast Aluminum

Pack Quantity

10
Inside Diameter

12.7

Type

Slotted Base Post Holder
Thread Type

1/4-20 (M6) Slot
Material

Cast Aluminum

Pack Quantity

10
Inside Diameter

12.7

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BPH Drawing (134.7 kB, PDF)

Other

M-BPH-PK RoHS Certificate (276.8 kB, PDF)
M-BPH-PK_RoHS2021.pdf (677.3 kB, PDF)
