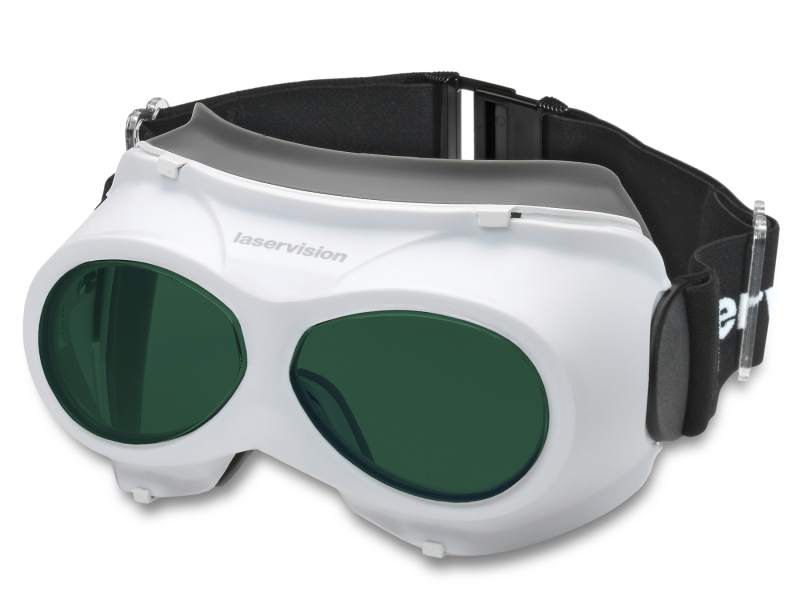

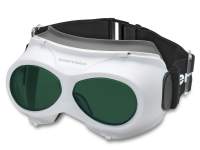

Laser Safety Goggles, Glass, 35% VLT, Diode, Disc, Dye, Fiber, Nd:YAG Lasers

The LV-R14.T1Q01 is for Diode, Disc, Dye, Fiber, Nd:YAG, Ho:YAG, Er:YAG and CO2 wavelengths. R14 style goggles with green color glass lenses. Laservision's Glass Filter Technology eyewear is designed to provide excellent field-of-vision lenses with multiple wavelength coverage. 35 % VLT (visible light transmission). R14 goggles are anti-fog design by providing a free flow of air from bottom to the top of the goggles, and comfortably fit over prescription eyewear. R14 frame offers increased protection from high power and M-Rated laser radiation due to its unique metal reinforcement. Also, the foam pads are replaceable. Meets ANSI Z136.1 and EN207 requirements. The frame height and the width are 85 mm and 170 mm, respectively.

Goggles Designed For Complete Laser Eye Protection

The advanced filter technology implemented in these goggles ensures maximum visibility with unsurpassed attenuation at specific laser wavelengths. The goggles design allows for complete eye coverage for complete protection. The transmission curve of each lens type is available for download below or by clicking on the model number in the order or specification table.

Transmission curve for model LS670 is shown. It uses Honeywell filter number 70.

Anti-Fog Design

These goggles come with an anti-scratch coating and anti-fog design to provide a free flow of air from bottom to top of goggles.

Foam Pads for Comfort and Easy Replacement

The foam pads on the goggles ensure comfort and are easily replaceable.

Fits Over Prescription Eyewear

The design of these goggles allow them to comfortably fit over prescription eyewear.

Specifications

Technical Specs

Frame Style
R14 Goggles
Visible Light Transmission
32%
Filter Color
Green
Filter Type
T1Q01
Optical Density
OD > 2-3 @ 633 nm
OD > 7 @ 690-795 nm
OD > 9 @ 795-1100 nm
OD > 8 @ 1100-1200 nm
OD > 7 @ 1200-1320 nm
OD > 3 @ 1320-1550 nm
OD > 4 @ 10.6 µm
Laser Type
Diode
Disc
Dye
Fiber
Ho:YAG
Er:YAG

Lens Material
Laminated Glass
CE
Yes
EN207
690-795 nm (DIRM LB7)
(795-805 nm (DIR LB7 + M LB9Y)
805-1100 nm (DIR LB7 + M LB9)
1100-1200 nm (DIR LB7 + M LB8)
1200-1320 nm (DIRM LB7)
1320-1400 nm (DIRM LB3)
1400-1550 nm (DIR LB3)
10,600 nm (DI LB4)

Frame Style
R14 Goggles
Visible Light Transmission
32%
Filter Color
Green
Filter Type
T1Q01
Optical Density
OD > 2-3 @ 633 nm
OD > 7 @ 690-795 nm
OD > 9 @ 795-1100 nm
OD > 8 @ 1100-1200 nm
OD > 7 @ 1200-1320 nm
OD > 3 @ 1320-1550 nm
OD > 4 @ 10.6 µm
Laser Type
Diode
Disc
Dye
Fiber
Ho:YAG
Er:YAG

Lens Material
Laminated Glass
CE
Yes
EN207
690-795 nm (DIRM LB7)
(795-805 nm (DIR LB7 + M LB9Y)
805-1100 nm (DIR LB7 + M LB9)
1100-1200 nm (DIR LB7 + M LB8)
1200-1320 nm (DIRM LB7)
1320-1400 nm (DIRM LB3)
1400-1550 nm (DIR LB3)
10,600 nm (DI LB4)

Resources & Downloads

Literature

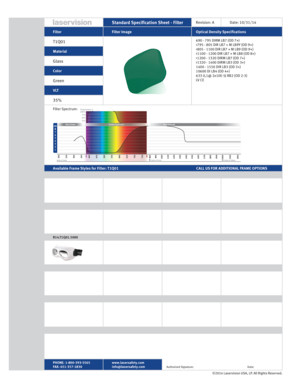

LV-R14.T1Q01 Specification Sheet(314.1 kB, PDF)
