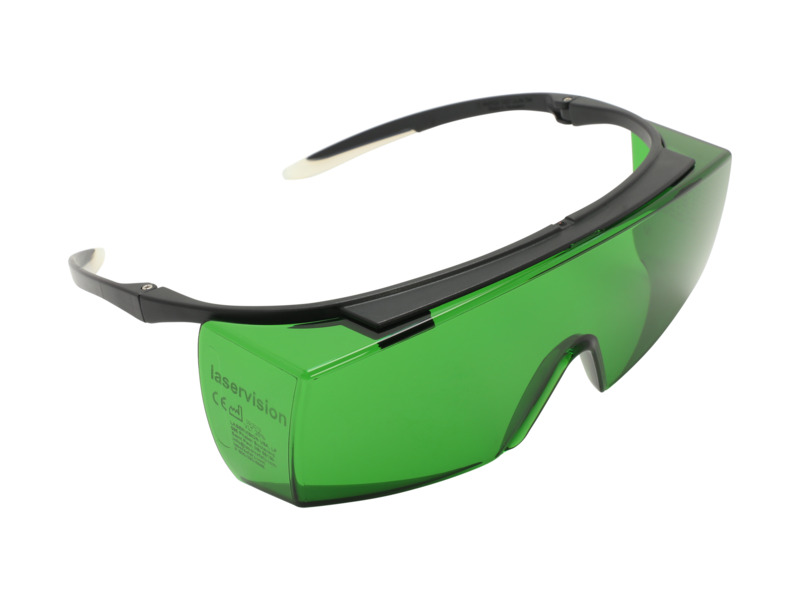

Laser Safety Glasses, Polycarbonate, 25% VLT, Excimer, Diode, Fiber, Nd:YAG

The LV-F22.P1L15 is for Excimer, Diode, Fiber, and Nd:YAG wavelengths. F22 style glasses with green color polycarbonate lenses. Laservision's Polycarbonate eyewear is designed to provide excellent field-of-vision lenses with multiple wavelength coverage. 25% VLT (visible light transmission). F22 glasses are light weight providing comfort during long term use, and easily fit over prescription eyewear. Meets ANSI Z136.1 and EN207 requirements.

Glasses Designed to Offer Complete Protection

The advanced filter technology implemented in these glasses ensures maximum visibility with unsurpassed attenuation at specific laser wavelengths. The transmission curve of each lens type is available for download here or on the individual product pages by clicking on a model number.

Optimal Field of View

Laservision's polycarbonate eyewear is designed to provide excellent field-of-vision lenses with multiple wavelength coverage.

Flexible Temples with Hinges and Light Weight for Comfort

These glasses features flexible temples with hinges. Coupled with their light weight, they provide comfort during long term use.

Fits Over Prescription Eyewear

The design of these goggles allows them to comfortably fit over prescription eyewear.

Specifications

Technical Specs

Frame Style
F22 OTG Glasses
Visible Light Transmission
25%
Filter Color
Green
Filter Type
P1L15
Optical Density
OD > 9 @ 180-315 nm
OD > 5 @ >315-450 nm
OD > 3 @ >450-460 nm
OD > 1 @ 620-<650 nm
OD > 2 @ 650-<680 nm
OD > 3 @ 680-<690 nm
OD > 4 @ 690-<700 nm
OD > 5 @ 700-<720 nm
OD > 6 @ 720-<755 nm
OD > 7 @ 755-1090 nm

Lens Material
Polycarbonate
CE
Yes
EN207
180-315 D LB9 + IR LB4
>315-450 DIR LB5
>450-460 DIR LB3
620-<650 DIR LB1
650-<680 DIR LB2
680-<690 DIR LB3
690-<700 DIR LB4
700-<720 DIR LB5
720-<755 DIR LB6
755-1090 D LB6 + IR LB7
620-635 0.01W 2x10E-6J RB1
650-665 0.1W 2x10E-5J RB2

Frame Style
F22 OTG Glasses
Visible Light Transmission
25%
Filter Color
Green
Filter Type
P1L15
Optical Density
OD > 9 @ 180-315 nm
OD > 5 @ >315-450 nm
OD > 3 @ >450-460 nm
OD > 1 @ 620-<650 nm
OD > 2 @ 650-<680 nm
OD > 3 @ 680-<690 nm
OD > 4 @ 690-<700 nm
OD > 5 @ 700-<720 nm
OD > 6 @ 720-<755 nm
OD > 7 @ 755-1090 nm

Lens Material
Polycarbonate
CE
Yes
EN207
180-315 D LB9 + IR LB4
>315-450 DIR LB5
>450-460 DIR LB3
620-<650 DIR LB1
650-<680 DIR LB2
680-<690 DIR LB3
690-<700 DIR LB4
700-<720 DIR LB5
720-<755 DIR LB6
755-1090 D LB6 + IR LB7
620-635 0.01W 2x10E-6J RB1
650-665 0.1W 2x10E-5J RB2

Resources & Downloads

Literature

LV-F22.P1L15 Specification Sheet(599.2 kB, PDF)
