Laser Safety Glasses, Polycarbonate, 10% VLT, Argon, Alexandrite, Diode, Dye

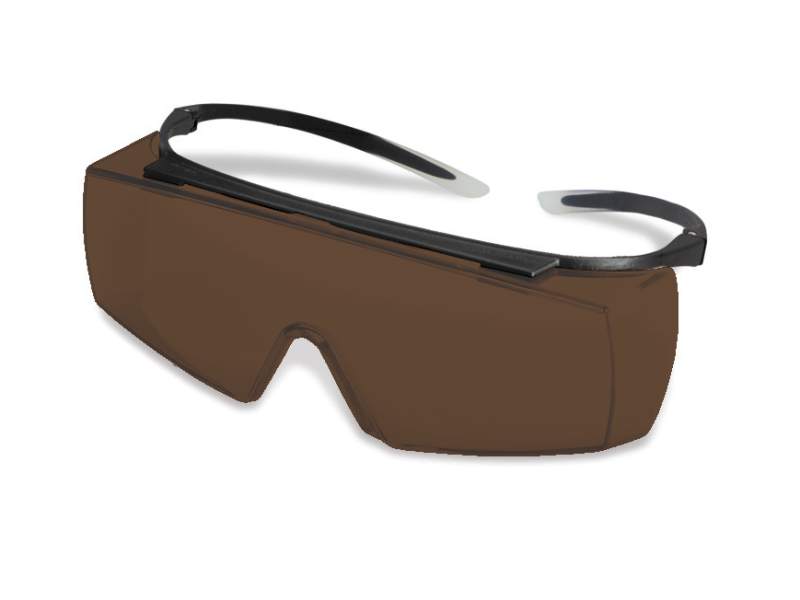

The LV-F22.P1L07 is for Argon, Alexandrite, Diode, Dye, Excimer, Nd:YAG (KTP + Harmonics), and Ti:Sapphire wavelengths. F22 style glasses with brown color polycarbonate lenses. Laservision's Polycarbonate eyewear is designed to provide excellent field-of-vision lenses with multiple wavelength coverage. 10 % VLT (visible light transmission). F22 glasses are light weight providing comfort during long term use, and easily fit over prescription eyewear. Meets ANSI Z136.1 and EN207 requirements.

Glasses Designed to Offer Complete Protection

The advanced filter technology implemented in these glasses ensures maximum visibility with unsurpassed attenuation at specific laser wavelengths. The transmission curve of each lens type is available for download here or on the individual product pages by clicking on a model number.

Optimal Field of View

Laservision's polycarbonate eyewear is designed to provide excellent field-of-vision lenses with multiple wavelength coverage.

Flexible Temples with Hinges and Light Weight for Comfort

These glasses features flexible temples with hinges. Coupled with their light weight, they provide comfort during long term use.

Fits Over Prescription Eyewear

The design of these goggles allows them to comfortably fit over prescription eyewear.

Specifications

Technical Specs

Frame Style
F22 OTG Glasses
Visible Light Transmission
10%
Filter Color
Brown
Filter Type
P1L07
Optical Density
OD > 10 @ 180-315 nm
OD > 8 @ >315-534 nm
OD > 6 @ >534-540 nm
OD > 3 @ >540-545 nm
OD > 1 @ 630-<660 nm
OD > 2 @ 660-<680 nm
OD > 3 @ 680-<700 nm
OD > 4 @ 700-<715 nm
OD > 5 @ 715-<725 nm
OD > 6 @ 725-<735 nm
OD > 7 @ 735-<745 nm
OD > 8 @ 745-1120 nm
OD > 7 @ >1120-1130 nm
OD > 6 @ >1130-1135 nm
OD > 5 @ >1135-1145 nm
OD > 4 @ >1145-1155 nm
OD > 3 @ >1155-1165 nm
OD > 2 @ >1165-1180 nm
OD > 1 @ >1180-1210 nm
Laser Type
Argon
Alexandrite
Dye
Excimer
Nd:YAG
Ti:Sapphire

Lens Material
Polycarbonate
CE
Yes
EN207
180-315 D LB10 + IR LB4 + M LB6
>315-534 D LB6 + IRM LB8
>534-540 DIRM LB6
>540-545 DIRM LB3
630-<660 DIRM LB1
660-<680 DIRM LB2
680-<700 DIRM LB3
700-<715 DIRM LB4
715-<725 DIRM LB5
725-<735 DIRM LB6
735-<745 D LB6 + IRM LB7
745-<755 D LB6 + IRM LB8
755-1120 D LB6 + IR LB8 + M LB9
>1120-1130 D LB6 + IRM LB7
>1130-1135 DIRM LB6
>1135-1145 DIRM LB5
>1145-1155 DIRM LB4
>1155-1165 DIRM LB3
>1165-1180 DIRM LB2
>1180-1210 DIRM LB1

Frame Style
F22 OTG Glasses
Visible Light Transmission
10%
Filter Color
Brown
Filter Type
P1L07
Optical Density
OD > 10 @ 180-315 nm
OD > 8 @ >315-534 nm
OD > 6 @ >534-540 nm
OD > 3 @ >540-545 nm
OD > 1 @ 630-<660 nm
OD > 2 @ 660-<680 nm
OD > 3 @ 680-<700 nm
OD > 4 @ 700-<715 nm
OD > 5 @ 715-<725 nm
OD > 6 @ 725-<735 nm
OD > 7 @ 735-<745 nm
OD > 8 @ 745-1120 nm
OD > 7 @ >1120-1130 nm
OD > 6 @ >1130-1135 nm
OD > 5 @ >1135-1145 nm
OD > 4 @ >1145-1155 nm
OD > 3 @ >1155-1165 nm
OD > 2 @ >1165-1180 nm
OD > 1 @ >1180-1210 nm
Laser Type
Argon
Alexandrite
Dye
Excimer
Nd:YAG
Ti:Sapphire

Lens Material
Polycarbonate
CE
Yes
EN207
180-315 D LB10 + IR LB4 + M LB6
>315-534 D LB6 + IRM LB8
>534-540 DIRM LB6
>540-545 DIRM LB3
630-<660 DIRM LB1
660-<680 DIRM LB2
680-<700 DIRM LB3
700-<715 DIRM LB4
715-<725 DIRM LB5
725-<735 DIRM LB6
735-<745 D LB6 + IRM LB7
745-<755 D LB6 + IRM LB8
755-1120 D LB6 + IR LB8 + M LB9
>1120-1130 D LB6 + IRM LB7
>1130-1135 DIRM LB6
>1135-1145 DIRM LB5
>1145-1155 DIRM LB4
>1155-1165 DIRM LB3
>1165-1180 DIRM LB2
>1180-1210 DIRM LB1

Resources & Downloads

Literature

LV-F22.P1L07 Specification Sheet(350.1 kB, PDF)
