Sorry, this product is no longer offered for sale. It was discontinued on Aug 11, 2020

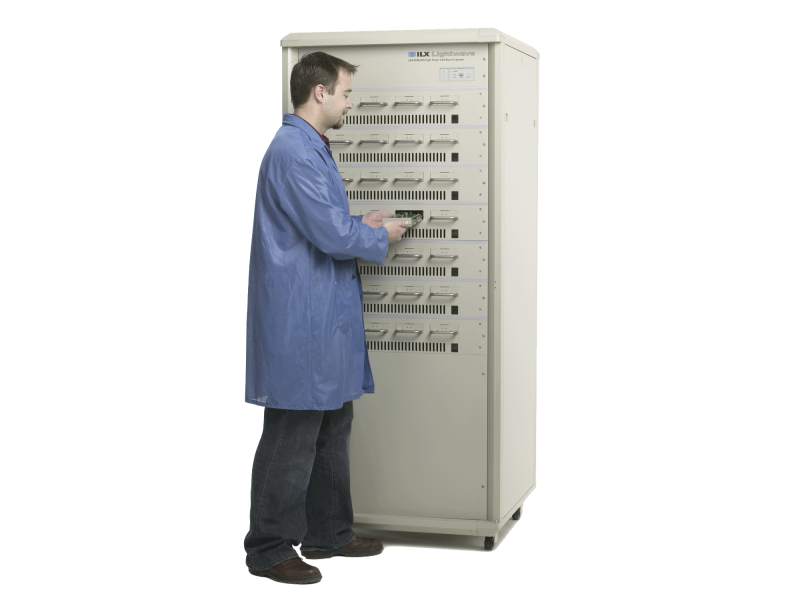

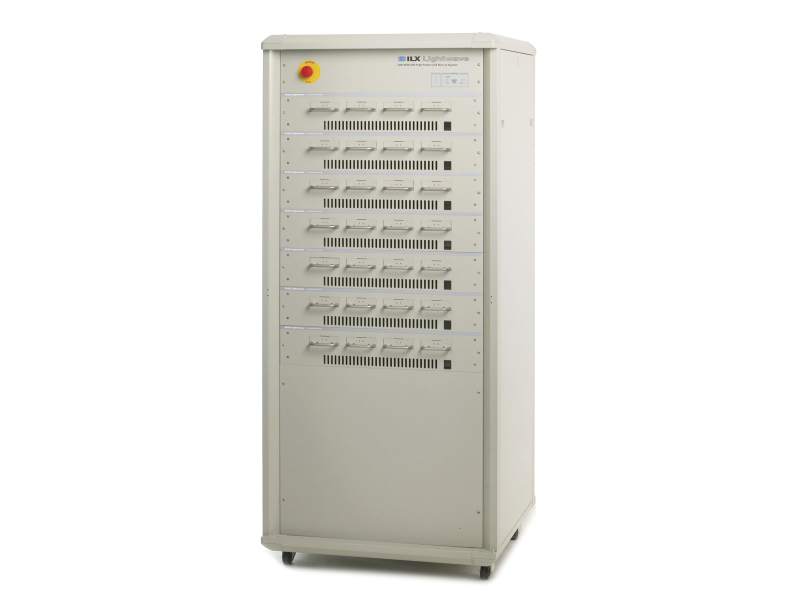

Laser Diode Burn In System, 0.5 to 30 Amp Diodes
With up to eight independent temperature controlled shelves supporting up to 512 high power devices per system, you will be able to run multiple independent tests, increase throughput, and lower your cost of test. The LRS-9550’s flexible design allows you to accommodate multiple package styles in the same system. The system supports ACC and LIV test modes with standard current ranges as high as 30 amps per device. For life-test applications, fixtures may be individually temperature controlled to provide temperature stabilities of better than 0.2°C from 25°C to 85°C. Improve your results with constant current (ACC) mode measurement stability of 0.2% over 1,000 hours, combined with continuous in-situ monitoring of laser voltage, and optical power throughout your life-test. The 9550’s ReliaTest system control software enables you to get your tests up and running quickly. Multiple device types and test scenarios are easily configured without complicated programming. Get powerful data logging, data back up, and data review features for multiple, simultaneous tests. ReliaTest’s fault handling ensures that valuable life-test data is preserved even through power black outs, brown outs, and control computer shutdowns.
Resources & Downloads
Literature
9550 Brochure(433.4 kB, PDF) SVC-2900 Laser Diode Test System Service Brochure(139.1 kB, PDF) ILX Test Systems Comparison Chart(729.6 kB, PDF)
Technical Notes
Protecting Your Laser Diode(2.3 MB, PDF) LRS-9550 Water Quality Guidelines(106.6 kB, PDF) LRS-9550 Device Temperature Algorithm(82.6 kB, PDF) LRS-9550 Laser Eye Safety Features(121.2 kB, PDF) Windows Desktop Remote Access(262.5 kB, PDF) Thermal Resistance of the LRS-9550-4442B C-Mount Fixture(174.1 kB, PDF) LRS-9550 Fixture Temperature Range(68 kB, PDF) LRS-9550 Laser Drive Current Setpoint Accuracy(757.5 kB, PDF)
Application Notes
Measuring High Power Laser Diode Junction Temperature and Package Thermal Impedance(234 kB, PDF) Laser Diode Burn-In and Reliability Testing(788.2 kB, PDF) Estimating Laser Diode Lifetimes and Activation Energy(346.9 kB, PDF) Accelerated Aging Test of 1310 nm Laser Diodes(348.5 kB, PDF) ReliaTest LI Threshold Calculations(390.1 kB, PDF)
Other
ILX Laser Diode Testing Reliability Workbook(217.3 kB, ZIP)
Manuals
LRS-9550 Test System User's Manual(3.1 MB, PDF)
Software
Laser Reliability Workbook 1.01(193.9 kB, ZIP)
