Thin Lens Mount Pack, Fixed, 25.4 mm Diameter, 8-32 Thread., A-LINE, Qty 10

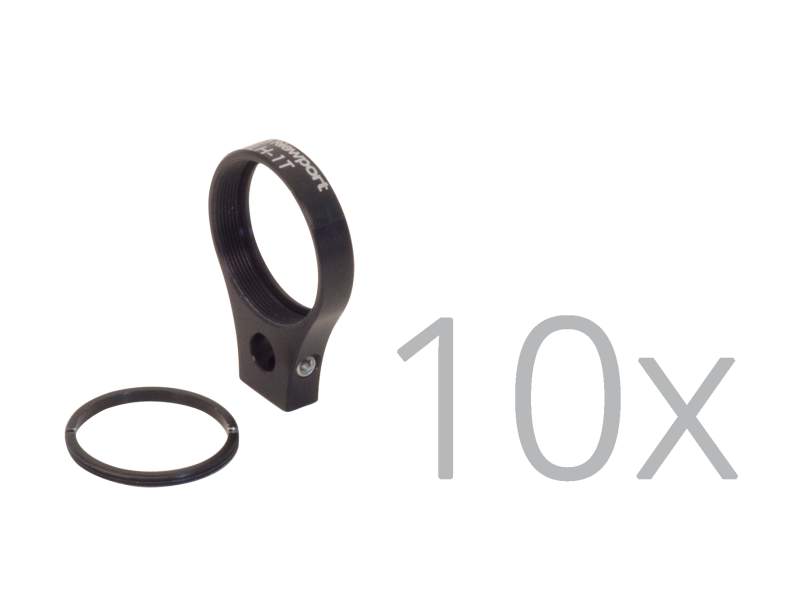

The LH-1T-PK is a 10-pack of the Fixed Lens Mount. This cost-saving 10 pack is a convenient and economical solution for mounting thin Ø1.0 inch (25.4 mm) lenses and beamsplitters. The 0.25-in. (6.4-mm) thick lens mount consists of a threaded holder with a retaining ring to hold the optic firmly, but gently. The holder incorporates an 8-32 threaded mounting hole for post mounting on English SP and MSP Series posts. The front of the holder also has a special 6 mm alignment hole, which can be used with GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts.

Specifications

Technical Specs

Type
Fixed Lens Mount
Optic Diameter
25.4 mm
Edge Thickness (T<sub>e</sub>)
3 mm
Optical Axis Height
31.8 mm
Adjustments
Fixed

Optic Retaining Thread
1.035‐40
Clear Aperture
22.9 mm
Thread Type
8-32

Type
Fixed Lens Mount
Optic Diameter
25.4 mm
Edge Thickness (T<sub>e</sub>)
3 mm
Optical Axis Height
31.8 mm
Adjustments
Fixed

Optic Retaining Thread
1.035‐40
Clear Aperture
22.9 mm
Thread Type
8-32
