Kinematic Mirror Mount, Insertable, 25.4 mm A-LINE
Kinematic Mirror Mount, Insertable, 25.4 mm A-LINE
Model: LH-1PY
Product Series Overview

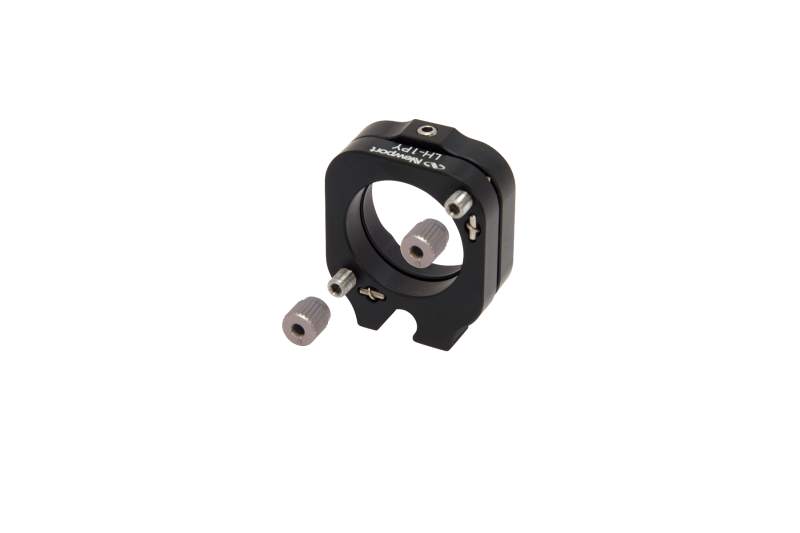

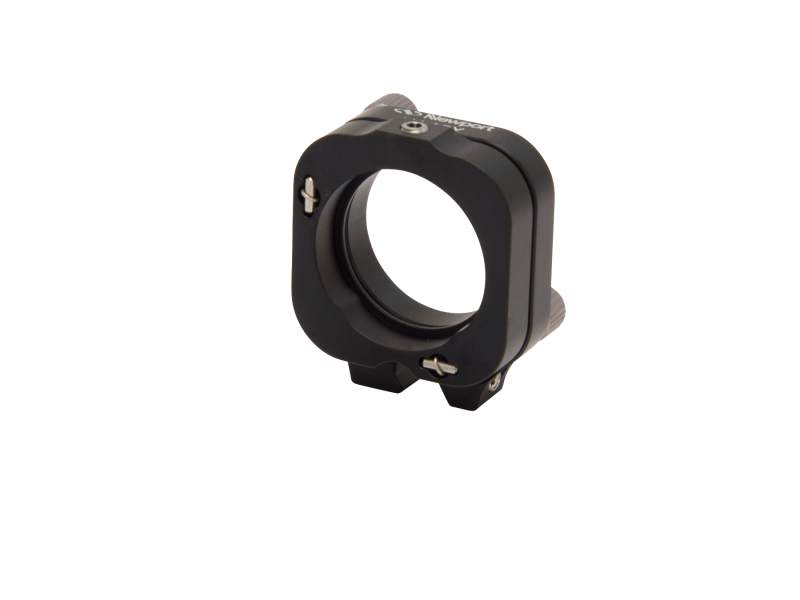

A-Line Adjustable Optic MountsThe A-LINE™ LH-1PY is an +/- 3-deg travel adjustable mirror mount for mounting Ø1 in. (25.4 mm) mirrors. The mount has a unique angled slot to allow it to be inserted on to the LH-GR guide rods. This feature allows the user to easily add and remove optics from the middle of a beam path with out disassembly. This mount has special threaded knobs which can be removed with the aid of a 5/64th (2-mm) hex wrench.
Resources & Downloads
2D Product Drawings
LH-1PY-361(419.1 kB, PDF)
Other
LH-1PY RoHS Certificate(277.1 kB, PDF) LH-1PY_RoHS2021.pdf(678.6 kB, PDF)
