Laser Diode Mount, 2-pin, Type 1, High Power [Discontinued]

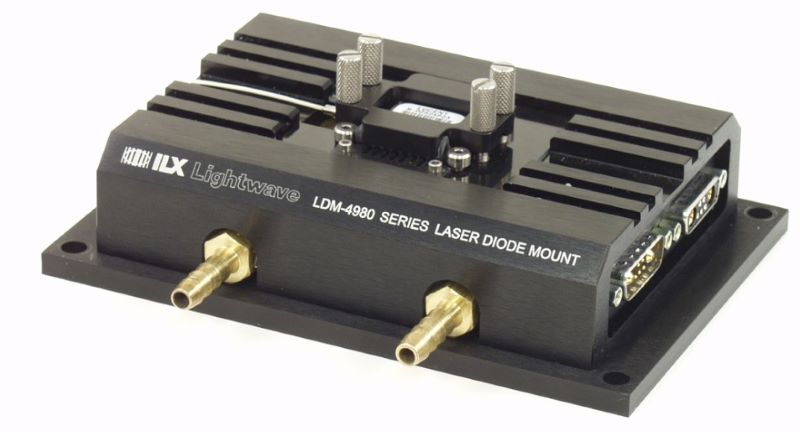

The LDM-4986001 High Power 2-Pin Laser Diode Module Mount is designed to support Type 1 high power 2-pin modules from Lumentum (formerly JDSU), Oclaro, Lumics, and Gooch and Housego (formerly EM4). The laser clamp provides alignment and excellent clamping pressure even when the 2-pin module does not include mounting flanges. Please contact an ILX Lightwave® sales engineer if you have any questions concerning fixturing your 2-pin laser diode package to the LDM4986001.
Specifications
- Package Type2-Pin, Type 1
- Maximum Current20 A
- TE CoolerNo
- Temperature SensorNone
- Connector TypeFemale Hybrid DSUB 7W2 (Diode)
- Heat Dissipation Capability40 W
- Dimensions31.8 x 102 x 140 mm
- Weight0.96 kg
