Sorry, this product is no longer offered for sale.

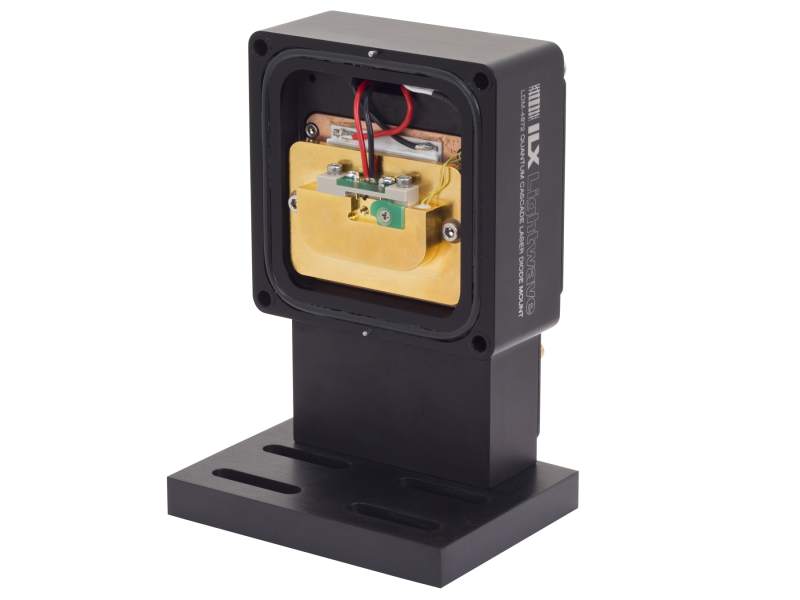

Laser Diode Mount, C-Mount, Quantum Cascade, Temp Controlled [Discontinued]
The LDM-487201 C-Mount Quantum Cascade Laser Mount provides convenient mounting for C-Mount package quantum cascade lasers. A wide temperature control range is accomplished by an integrated thermoelectric module and a high performance water-cooled cold plate which provides for an active control range of -30°C to 30°C with heat loads up to 10W.
The LDM487201 is compatible with the LDM-487212 ZnSe Window or LDM-48723x series of XYZ stages with ZnSe collimating optics. Contact ILX Lightwave for custom mounting block options.
Resources & Downloads
Application Notes
Choosing the Right Laser Diode Mount for Your Application(610.4 kB, PDF)
Manuals
LDM-4872 Laser Diode Mounts User's Manual(723.2 kB, PDF)
Literature
LDM-4872 Quantum Cascade Laser Diode Mount Brochure(246.4 kB, PDF)
Technical Notes
Vacuum Operation of the LDM-4872(70.9 kB, PDF) Minimum Temperature Control Range and Stability of the LDM-4872(53 kB, PDF)
