Sorry, this product is no longer offered for sale.

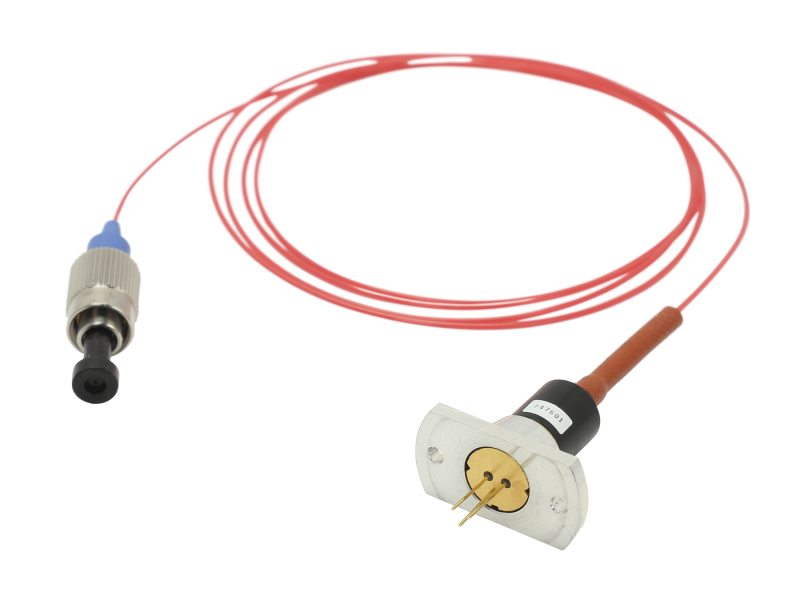

Laser Diode, Fiber Pigtailed, 635 nm, 1.0 mW, 4/125 Single-mode, FC
The LD-635-31A Fiber Coupled Laser Diode consists of Fabry-Perot lasers, having a fiber pigtail precisely attached for optimum coupling efficiency. This 635 nm center wavelength version has a typical 1.0 mW of output power and includes a back facet photodiode. It is compatible with Newport’s 710 Temperature Controlled Mount. The 4/125 μm single-mode fiber pigtail is terminated with an FC style fiber optic connector. Applications include high-speed data and telecommunications systems and instrumentation, and optical instruments requiring a laser diode light source. Backed by 30 day return-for-credit when the product is returned in the original sealed bag with no sign of physical damage. The product is highly ESD sensitive so a grounding wrist strap, like the FK-STRAP, is suggested to prevent damage.
Specifications
- TypeFiber Pigtailed Laser Diode
- Center Wavelength635 nm
- Center Wavelength Tolerance±10 nm
- Output Power1.0 mW
- Maximum Operating Current70 mA
- Threshold Current50 mA
- Rise/Fall Time1.5 ns
- Core Diameter4 µm
- Cladding Diameter125 µm
- Fiber ConnectorFC/PC
- Operating Temperature-10 to 40°C
- Pin-Out2 AC
Resources & Downloads
2D Product Drawings
LD Bracket Dimensions(115.4 kB, PDF) Fiber Pigtailed LD Dimensions.pdf(72.3 kB, PDF)
