Please note that LBP2-HR-VIS3 replaces this product in April 2020.

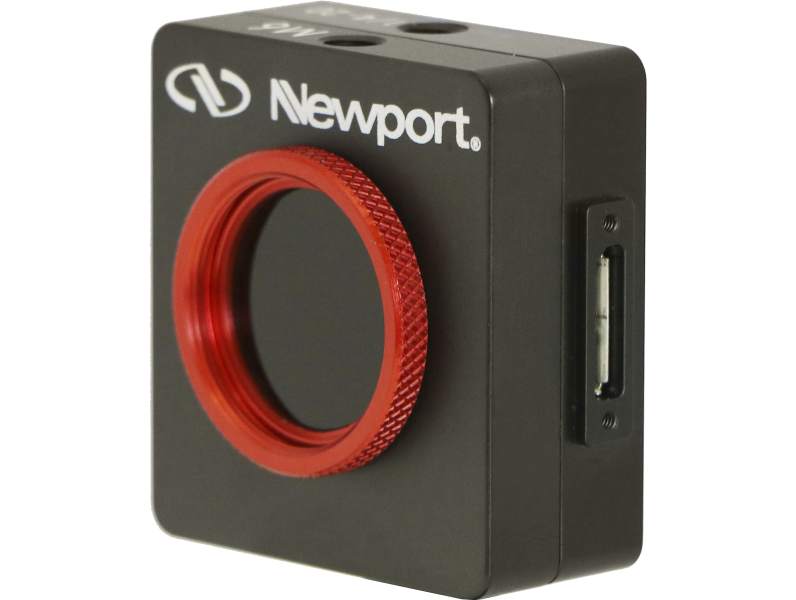

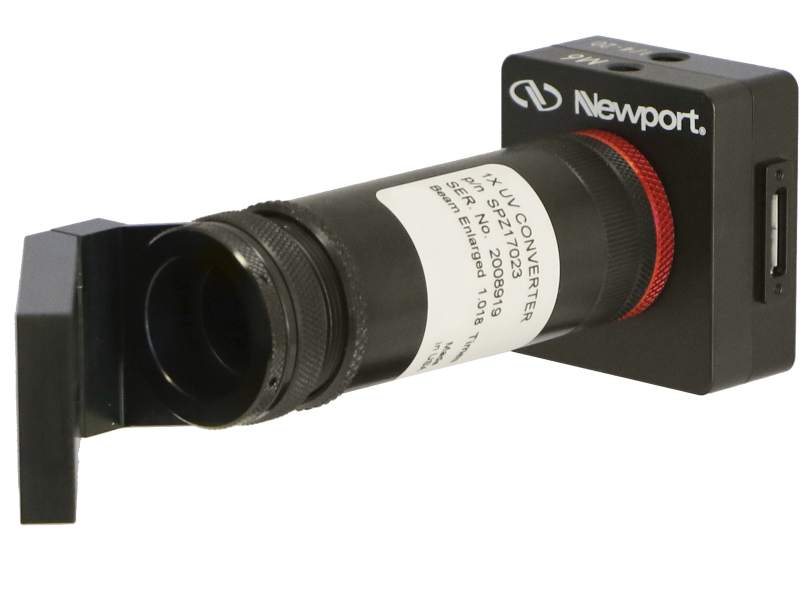

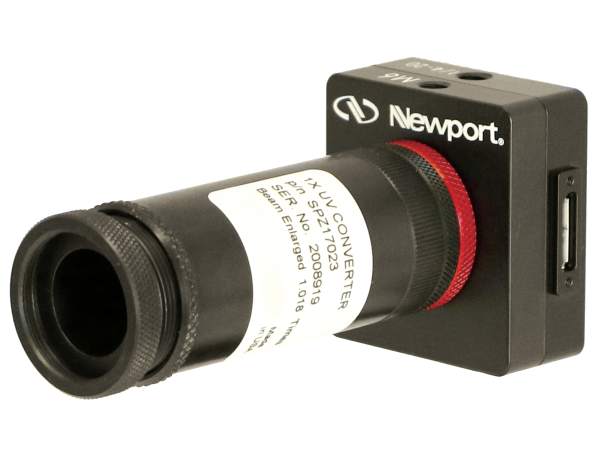

The LBP2-HR-VIS2 Laser Beam Profiler, replacing the obsoleting camera of LBP2-HR-VIS, is a powerful software driven camera with comprehensive beam diagnostic measurement features. It features the new Model SP928, a 1/1.8 inch format 1924 x 1448 pixel CCD camera for the wavelength range between 190 and 1100 nm. The protective window on the CCD chip is removed to eliminate optical interference. Includes a USB3.0 compatible cable. The easy to use graphical user interface includes all of the accuracy and ISO approved quantitative results. Each laser beam profiler comes with one stackable LBP2-ND1 and two LBP2-ND2 filters with a 19 mm clear aperture, 1 inch-32UN (C-Mount) thread. The damage threshold for these ND filters is 50 W/cm2, however, distortion due to thermal lensing can happen at as low as 5 W/cm2. For the UV laser beam between 193 and 360 nm, also consider purchasing the LBP2-UVIMG UV Image Converter.
LT10-CMT-NThread Adaptor, 1.0 in. Lens Tubes, 1.035-40 to 1.000-32 Internal C-Mount Thread
UNIVERSAL
In Stock
$28.00
LT10-CMT-XThread Adaptor, 1.0 in. Lens Tubes, 1.035-40 to 1.000-32 External C-Mount Thread
UNIVERSAL
In Stock
$28.00
LBP2-HR-VIS2 - Drawings & CAD
Additional CAD file downloads are not available for this product.
LBP2-HR-VIS2 - Drawings
Additional drawings are not available for this product.
