Mounted Aspheric Lens, Molded Glass, 6.325 mm, 4.00 mm FL, 600-1050 nm
Mounted Aspheric Lens, Molded Glass, 6.325 mm, 4.00 mm FL, 600-1050 nm
Model: KGA671-B-MT
In Stock
Product Series Overview

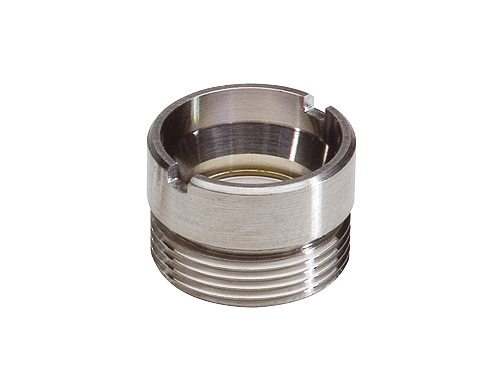

Mounted Molded Glass Aspheric LensesThe KGA671-B-MT Geltech Molded Glass Aspheric Lens is a very economic choice for collimating or focusing light at high magnification. It is made from ECO550 glass, which features low dispersion (Vd=50.02). Typical applications include fiber coupling, laser diodes, medical lasers, optical data storage, and barcode scanners. This 6.325 mm diameter lens has an effective focal length of 4.00 mm and a 0.60 NA. It has a NIR anti-reflective coating for 600-1050 nm and is mounted in a durable stainless steel housing with a threaded exterior.
Resources & Downloads
2D Product Drawings
KGA-MT9-S(459.7 kB, PDF)
Other
KGA671-B-MT RoHS Certificate(265.2 kB, PDF) KGA671-B-MT_ROHS2-2021.pdf(279.1 kB, PDF)
