Bi-Convex Lens, N-BK7, 25.4 mm Diameter, 100 mm EFL, 1000-1550nm

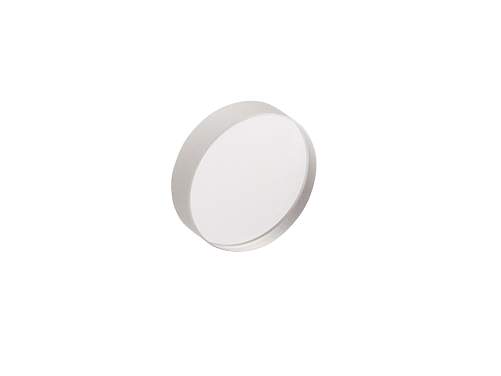

IR N-BK7 Bi-Convex Lenses

The KBX064AR.18 N-BK7 Bi-Convex Lens is a 1 inch (25.4 mm) diameter, 1000 to 1550 nm anti-reflection coated, N-BK7 bi-convex lens with an effective focal length of 100 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport's N-BK7 precision bi-convex lenses are manufactured from fine annealed optical glass and are polished to tight tolerances using master test plates to ensure minimum wavefront distortion.

Specifications

Technical Specs

Lens Shape
Bi-Convex
Diameter
25.4 mm
Lens Material
N-BK7
Antireflection Coating
1000-1550 nm
Coating Type
IR Multilayer
Coating Code
AR.18
Damage Threshold
7.5 J/cm², 10 ns pulses, 20 Hz at 1064 nm
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4
Surface Accuracy, Power
1.5 λ
F/#
3.9
Effective Focal Length (EFL)
100 mm
Back Focal Length (BFL)
98.47 mm
Radius of Curvature (R)
102.577 mm
Edge Thickness (T<sub>e</sub>)
3.0 mm

Center Thickness (T<sub>c</sub>)
4.578 mm
Principal Plane 1 (P<sub>1</sub>)
1.52 mm
Principal Plane 2 (P<sub>2</sub>)
-1.52 mm
Design Wavelength
589 nm
Centration
≤3 arc min
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Focal Length Tolerance
±1 %
Diameter Tolerance
+0/-0.1 mm
Center Thickness Tolerance
±0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics

Lens Shape
Bi-Convex
Diameter
25.4 mm
Lens Material
N-BK7
Antireflection Coating
1000-1550 nm
Coating Type
IR Multilayer
Coating Code
AR.18
Damage Threshold
7.5 J/cm², 10 ns pulses, 20 Hz at 1064 nm
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4
Surface Accuracy, Power
1.5 λ
F/#
3.9
Effective Focal Length (EFL)
100 mm
Back Focal Length (BFL)
98.47 mm
Radius of Curvature (R)
102.577 mm
Edge Thickness (T<sub>e</sub>)
3.0 mm

Center Thickness (T<sub>c</sub>)
4.578 mm
Principal Plane 1 (P<sub>1</sub>)
1.52 mm
Principal Plane 2 (P<sub>2</sub>)
-1.52 mm
Design Wavelength
589 nm
Centration
≤3 arc min
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Focal Length Tolerance
±1 %
Diameter Tolerance
+0/-0.1 mm
Center Thickness Tolerance
±0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics

Resources & Downloads

2D Product Drawings

BI-CONVE-XLE-S(89.3 kB, PDF)

Software

KBX064AR.18 Zemax File(5.3 kB, ZMX)

Other

KBX064AR.18 RoHS Certificate(708.5 kB, PDF)
AR.18 Raw Data.xlsx(113.4 kB, XLSX)
