Bi-Convex Lens, N-BK7, 25.4 mm Diameter, 100 mm EFL, 650-1000nm

The KBX064AR.16 N-BK7 Bi-Convex Lens is a 1 inch (25.4 mm) diameter, 650 to 1000 nm anti-reflection coated, N-BK7 bi-convex lens with an effective focal length of 100 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport's N-BK7 precision bi-convex lenses are manufactured from fine annealed optical glass and are polished to tight tolerances using master test plates to ensure minimum wavefront distortion.

Specifications

Technical Specs

Lens Shape
Bi-Convex
Diameter
25.4 mm
Lens Material
N-BK7
Antireflection Coating
650-1000 nm
Coating Type
NIR Multilayer
Coating Code
AR.16
Damage Threshold
7.5 J/cm², 10 ns pulses, 10 Hz at 1064 nm
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4
Surface Accuracy, Power
1.5 λ
F/#
3.9
Effective Focal Length (EFL)
100 mm
Back Focal Length (BFL)
98.47 mm
Radius of Curvature (R)
102.577 mm
Edge Thickness (Te)
3.0 mm

Center Thickness (Tc)
4.578 mm
Principal Plane 1 (P1)
1.52 mm
Principal Plane 2 (P2)
-1.52 mm
Design Wavelength
589 nm
Centration
≤3 arc min
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Focal Length Tolerance
±1 %
Diameter Tolerance
+0/-0.1 mm
Center Thickness Tolerance
±0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics

Lens Shape
Bi-Convex
Diameter
25.4 mm
Lens Material
N-BK7
Antireflection Coating
650-1000 nm
Coating Type
NIR Multilayer
Coating Code
AR.16
Damage Threshold
7.5 J/cm², 10 ns pulses, 10 Hz at 1064 nm
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4
Surface Accuracy, Power
1.5 λ
F/#
3.9
Effective Focal Length (EFL)
100 mm
Back Focal Length (BFL)
98.47 mm
Radius of Curvature (R)
102.577 mm
Edge Thickness (Te)
3.0 mm

Center Thickness (Tc)
4.578 mm
Principal Plane 1 (P1)
1.52 mm
Principal Plane 2 (P2)
-1.52 mm
Design Wavelength
589 nm
Centration
≤3 arc min
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Focal Length Tolerance
±1 %
Diameter Tolerance
+0/-0.1 mm
Center Thickness Tolerance
±0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics

Resources & Downloads

Related Products

Similar

Description	Compatibility	Avail.	Price
KPX094AR.16Plano-Convex Lens, N-BK7, 25.4 mm Diameter, 100 mm EFL, 650-1000 nm	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$57
CKX100AR.16Cylindrical Lens, Plano-Convex, N-BK7, 50.8x50.8mm, 100mm, 650-1000nm	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$215
SBX028AR.16Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 100 mm EFL, 650-1000nm	UNIVERSAL	Contact Us	$174
KBX022AR.16Bi-Convex Lens, N-BK7, 12.7 mm Diameter, 12.7 mm EFL, 650-1000nm	UNIVERSAL	Contact Us	$64

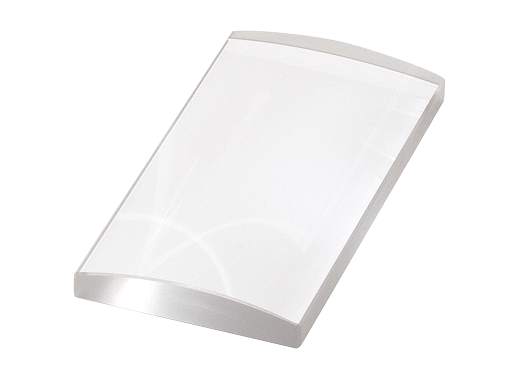

CSX100AR.16Cylindrical Lens, Plano-Convex, 50.8x25.4 mm, 100 mm FL, FS, 650-1000nm	UNIVERSAL	In Stock	$498
