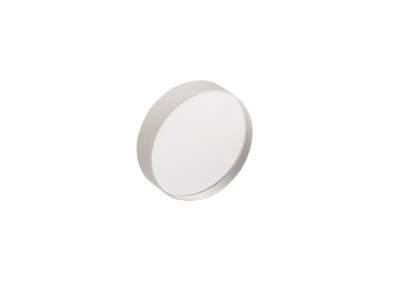

Bi-Convex Lens, N-BK7, 12.7 mm Diameter, 62.9 mm EFL, 1000-1550nm
Bi-Convex Lens, N-BK7, 12.7 mm Diameter, 62.9 mm EFL, 1000-1550nm
Model: KBX037AR.18
Back-to-School Sale
Save 50% off for a limited time!
Learn More
Save 50% off for a limited time!
Learn More
In Stock
Product Series Overview
IR N-BK7 Bi-Convex LensesThe KBX037AR.18 N-BK7 Bi-Convex Lens is a 1/2 inch (12.7 mm) diameter, 1000 to 1550 nm anti-reflection coated, N-BK7 bi-convex lens with an effective focal length of 62.9 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport's N-BK7 precision bi-convex lenses are manufactured from fine annealed optical glass and are polished to tight tolerances using master test plates to ensure minimum wavefront distortion.
Specifications
- Lens ShapeBi-Convex
- Diameter12.7 mm
- Lens MaterialN-BK7
- Antireflection Coating1000-1550 nm
- Coating TypeIR Multilayer
- Coating CodeAR.18
- Damage Threshold7.5 J/cm2, 10 ns pulses, 20 Hz at 1064 nm
- Surface Quality40-20 scratch-dig
- λ/4
- 1.5 λ
- F/#4.9
- 62.9 mm
- 61.69 mm
- 64.392 mm
- 3.0 mm
- 3.628 mm
- Principal Plane 1 (P<sub>1</sub>)1.20 mm
- Principal Plane 2 (P<sub>2</sub>)-1.20 mm
- Design Wavelength589 nm
- Centration≤3 arc min
- Chamfers0–0.8 mm face width
- Chamfers Angle/Tolerance45° ±15°, typical
- Focal Length Tolerance±1 %
- Diameter Tolerance+0/-0.1 mm
- Center Thickness Tolerance±0.1 mm
- Clear Aperture≥central 90% of diameter
- Cleaning
Resources & Downloads
3D Product Models
2D Product Drawings
BI-CONVE-XLE-S(89.3 kB, PDF)
Software
KBX037AR.18 Zemax File(5.3 kB, ZMX)
Other
KBX037AR.18 RoHS Certificate(711 kB, PDF) AR.18 Raw Data.xlsx(113.4 kB, XLSX)
