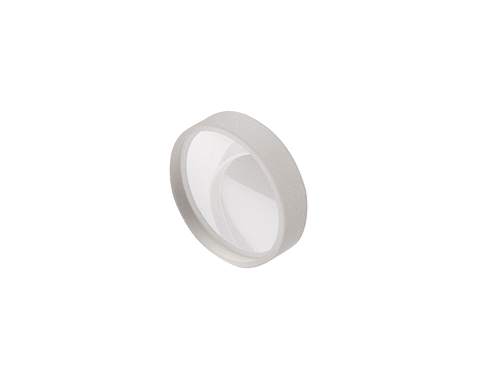

Bi-Concave Lens, N-BK7, 12.7 mm Diameter, -100 mm EFL, 650-1000nm

The KBC016AR.16 Bi-Concave Lens is a 650 to 1000 nm anti-reflection coated, 12.7 mm diameter, N-BK7 Bi-concave lens with an effective focal length of -100 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport's N-BK7 precision bi-concave lenses are manufactured from fine annealed optical glass and are polished to tight tolerances using master test plates to ensure minimum wavefront distortion.

Specifications

Technical Specs

Lens Shape
Bi-Concave
Diameter
12.7 mm
Lens Material
N-BK7
Antireflection Coating
650-1000 nm
Coating Type
NIR Multilayer
Coating Code
AR.16
Damage Threshold
7.5 J/cm², 10 ns pulses, 10 Hz at 1064 nm
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4
Surface Accuracy, Power
1.5 λ
F/#
-7.8
Effective Focal Length (EFL)
-100 mm
Back Focal Length (BFL)
-100.82 mm
Radius of Curvature (R)
-103.785 mm
Edge Thickness (Te)
2.82 mm

Center Thickness (Tc)
2.5 mm
Principal Plane 1 (P1)
0.82 mm
Principal Plane 2 (P2)
-0.82 mm
Design Wavelength
589 nm
Centration
≤3 arc min
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Focal Length Tolerance
±1 %
Diameter Tolerance
+0/-0.1 mm
Center Thickness Tolerance
±0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics

Lens Shape
Bi-Concave
Diameter
12.7 mm
Lens Material
N-BK7
Antireflection Coating
650-1000 nm
Coating Type
NIR Multilayer
Coating Code
AR.16
Damage Threshold
7.5 J/cm², 10 ns pulses, 10 Hz at 1064 nm
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4
Surface Accuracy, Power
1.5 λ
F/#
-7.8
Effective Focal Length (EFL)
-100 mm
Back Focal Length (BFL)
-100.82 mm
Radius of Curvature (R)
-103.785 mm
Edge Thickness (Te)
2.82 mm

Center Thickness (Tc)
2.5 mm
Principal Plane 1 (P1)
0.82 mm
Principal Plane 2 (P2)
-0.82 mm
Design Wavelength
589 nm
Centration
≤3 arc min
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Focal Length Tolerance
±1 %
Diameter Tolerance
+0/-0.1 mm
Center Thickness Tolerance
±0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics
