Sorry, this product is no longer offered for sale. The recommended replacement product is ISO-FRDY-08-1030-N.
Faraday Optical Isolator, High Power, 8 mm, 1030 nm, 1/2 Waveplate

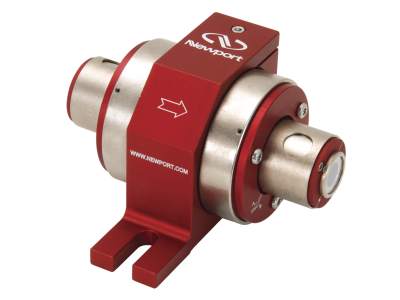

The ISO-FRDY-08-1030-W Faraday Optical Isolator is essentially a uni-directional light valve. It is used to protect a laser source from destabilizing feedback or actual damage from back-reflected light. This 1030 nm high power free space optical isolator is packaged in a compact cylindrically shaped magneto-optic device with a base plate for ease of mounting into an optical train. It has a 8 mm clear aperture and a 1017 to 1043 nm wavelength range. Horizontal input and vertical polarization output. This -W version includes a 1/2 waveplate.
High Power Fused Silica PBS Cube
1/2 Waveplate Option
We offer versions with an added zero order 1/2 wave plate (-W models) at the output stage so that the direction of the output beam polarization can be rotated to a desired direction.
High Efficiency Performance
The TGG crystal utilized in our Faraday isolators creates a large Verdet constant that ultimately describes the strength of the Faraday effect and provides effective isolation of back-reflected light. Additionally, these isolators have low absorption as a function of the TGG crystal and polarizers, resulting in reliable transmission of light in the forward direction.
Easy Placement into Optical Train
These isolators are packaged in a compact, cylindrically-shaped magneto-optic device with a base plate for easy mounting into an optical train.
Resources & Downloads
Application Notes
Feedback Prevention with Optical Isolators(11.6 MB, PDF)
Manuals
High Power Faraday Isolator User Manual (8 mm aperture)(812.9 kB, PDF)
Other
MKS EU RoHS3 Cert - Faraday Optical Isolators(125 kB, PDF)
