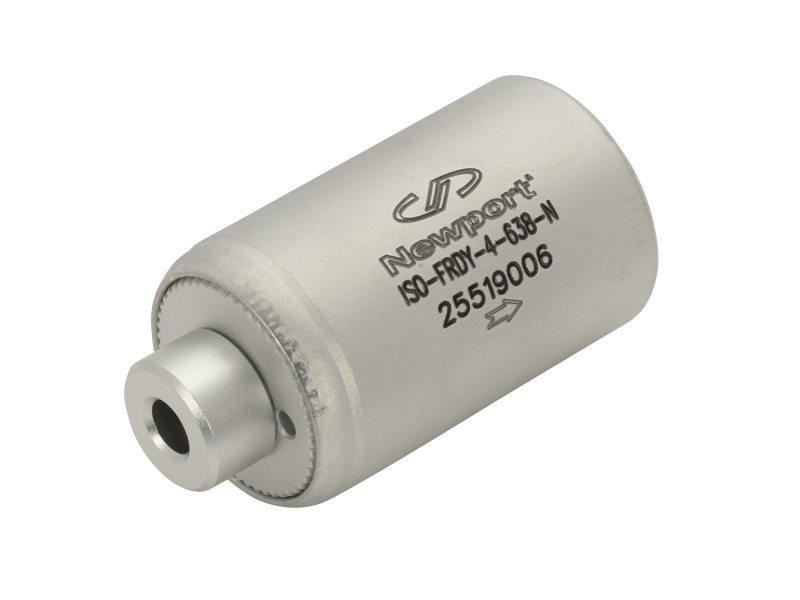

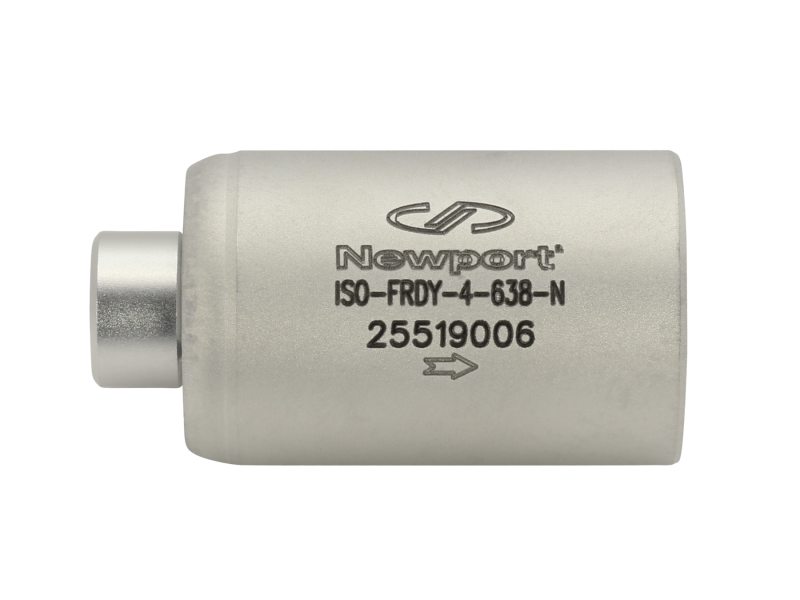

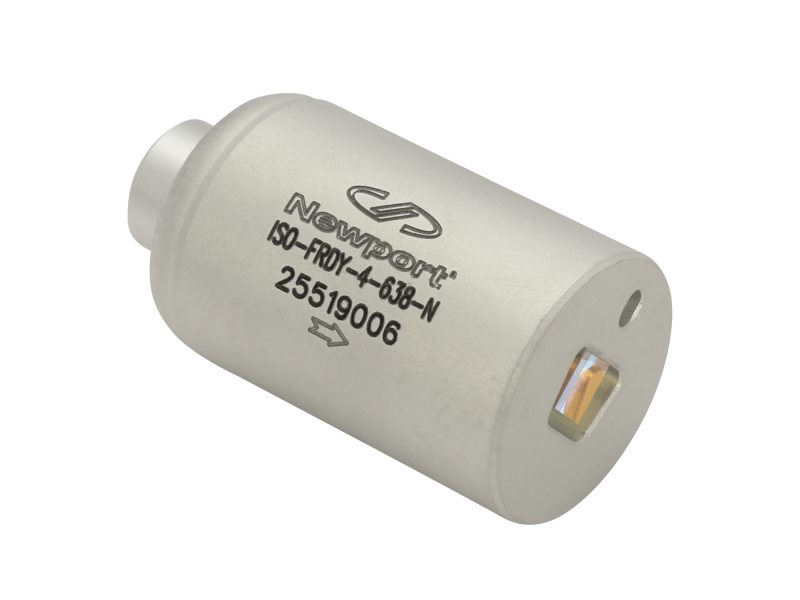

Faraday Optical Isolator, Compact, 4 mm, 638 nm, PM Isolator
Model: ISO-FRDY-04-638-N
Product Series Overview
Compact Faraday Optical IsolatorsThe ISO-FRDY-04-638-N Compact Optical Isolator is essentially a uni-directional light valve. It is primarily used for elimination of frequency instability in single frequency lasers such as laser diodes and OPSLs, the prevention of mode-hopping in external cavity diode lasers, and the elimination of parasitic oscillations due to ASE in amplified laser systems. The compact design makes it highly suitable for OEM integration. It has a 4 mm clear aperture and a 628 nm to 648 nm wavelength range. The ISO-FRDY-04-638-N contains optically-contacted polarizing beam splitter cubes resulting in high transmission as compared to other available isolators.
High Transmission Polarizing Beamsplitter Cube
Our compact isolators contain optically contacted polarizing beamsplitter cubes that provide high transmission. With more photons available for your application, diodes can be run at lower currents, extending the diode lifetime.
Mounting to a Table, Stage, or Post
Newport offers the
Applications
Common applications for compact isolators include:
- Eliminating frequency instability in single-frequency lasers, such as diodes and OPSLs
- Preventing mode-hopping in external cavity diode lasers
- Eliminating parasitic oscillations due to ASE in amplified laser systems
Resources & Downloads
Application Notes
Feedback Prevention with Optical Isolators(11.6 MB, PDF)
2D Product Drawings
ISO-FRDY-4-638-N.pdf(191.2 kB, PDF)
Literature
Compact Optical Isolators Datasheet(321.1 kB, PDF)
Manuals
Compact User Guide.pdf(331.2 kB, PDF)
Other
MKS EU RoHS3 Cert - Faraday Optical Isolators(125 kB, PDF)
