Sorry, this product is no longer offered for sale. The recommended replacement product is IRV2-1700.

Miniature Infrared Viewer, 350 to 1700 nm Range

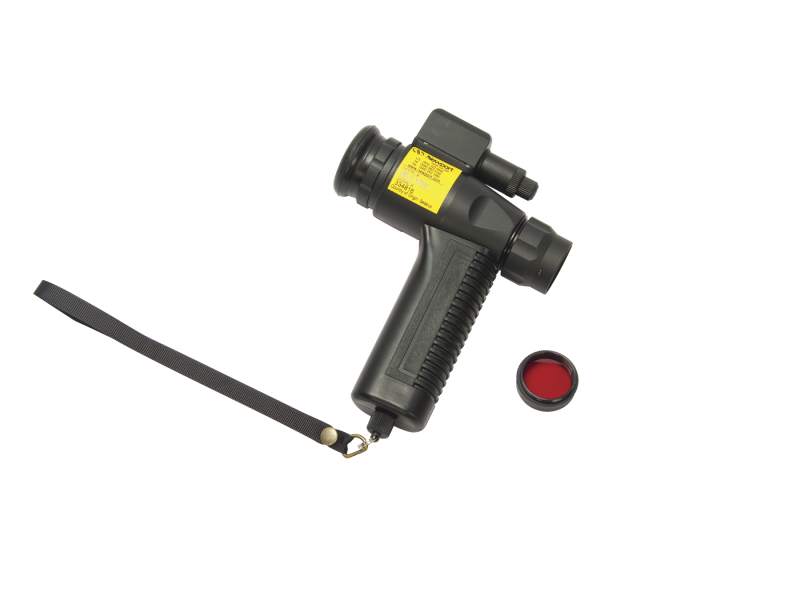

The IRV1-1700 Miniature Infrared Viewer, Low cost battery operated handheld viewer for the 350–1700 nm range. Includes the handle, an IR filter and a case. 1/4-20 threaded hole for handle attachment, post or tripod mounting.

Product is obsolete. Available while supplies last.

Specifications

Technical Specs

Type
IR Viewer
Wavelength Range
350 - 1700 nm
Damage Threshold
10 mW/cm²
Field of View
25°
Focus Range
0.15 m to Infinity
Magnification
1.8X
Resolution
50 l/mm

Battery
2 x LR44
Battery Life
18 hours
Dimensions
135 x 65 x 43 mm
Operating Temperature
-10 to 40°C
Weight
0.25 kg

Type
IR Viewer
Wavelength Range
350 - 1700 nm
Damage Threshold
10 mW/cm²
Field of View
25°
Focus Range
0.15 m to Infinity
Magnification
1.8X
Resolution
50 l/mm

Battery
2 x LR44
Battery Life
18 hours
Dimensions
135 x 65 x 43 mm
Operating Temperature
-10 to 40°C
Weight
0.25 kg

Resources & Downloads

Technical Notes

IRV2 Series Magnification Lens Assembly - Technical Note(549.2 kB, PDF)

Manuals

IRV1 Infrared Viewers Instruction Sheet(241.6 kB, PDF)
