Optical Table System, Integrity 2 VCS, 3 x 6 ft., 8 in. Thick, Isolated

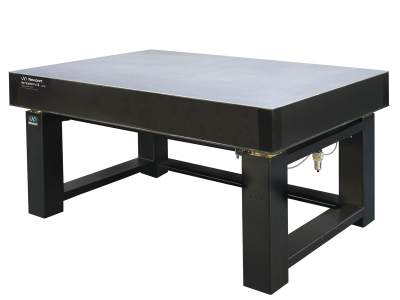

The Integrity 2 Series VCS is designed to provide a superior working surface for general purpose photonics applications that are not extremely sensitive to vibrations. Integrity 2 VCS systems are often used in spectroscopy, multimode fiber, micropositioning and non-interferometric applications. The INT2-36-8-A VCS™ Vibration Control System includes an active leveling isolated support frame and a 3 ft. wide x 6 ft. long x 8 in. thick optical platform with 1/4-20 threaded holes on a 1 in. grid. The isolated VCS™ platform also integrates Newport’s pneumatic isolation with a new rigid frame design to deliver an economical isolation platform with superior isolation performance. Integrity VCS systems' innovative isolation platform features an optional integrated shelf and mobility accessories to optimize laboratory space, organization and safety.

Specifications

Technical Specs

Type
Optical Table System
Optical Table Supports
Pneumatic Isolators Included
Broadband Damping
Constrained layer core, damped working surface and composite edge finish
Tuned Damping
No
Active Damping
No
Width
3 ft.
Length
6 ft.
Thickness
8 in.
Working Surface Height
36.7 ±0.5 in.
Mounting Holes
1/4-20
Working Surface
3/16 in. thick 400 series ferromagnetic stainless steel
Surface Flatness
±0.004 in. over 2 ft. square
Mounting Hole Pattern
1 in. grid
Mounting Hole Borders
0.5 in.
Alphanumeric Grid Labels
No
Hole Sealing Type
Easy clean non-corrosive high impact polymer conical cup, 0.75 in. deep
Core Design
Trussed honeycomb, vertically bonded closed cell construction, 0.010 in. steel sheet materials, 0.030 in. triple core interface
Bottom Skin Material
3/16 in. thick carbon steel

Horizontal Isolation, Res.
1.9 Hz
Horizontal Amplification at Resonance
12.5 dB
Horizontal Isolation, 5 Hz
80%
Horizontal Isolation, 10 Hz
94%
Vertical Isolation, Res.
1.7 Hz
Vertical Amplification at Resonance
15 dB
Vertical Isolation, 5 Hz
86%
Vertical Isolation, 10 Hz
96%
Load Capacity per Isolator
800 lb
Maximum Payload
2740 lb
Weight - Tabletop
460 lb
Weight - System
709 lb
Crated Weight - Tabletop
610 lb
Crated Weight - System
919 lb
Frame Assembly Height
28.7 ±0.5 in.
Maximum Air Pressure
85 psi

Type
Optical Table System
Optical Table Supports
Pneumatic Isolators Included
Broadband Damping
Constrained layer core, damped working surface and composite edge finish
Tuned Damping
No
Active Damping
No
Width
3 ft.
Length
6 ft.
Thickness
8 in.
Working Surface Height
36.7 ±0.5 in.
Mounting Holes
1/4-20
Working Surface
3/16 in. thick 400 series ferromagnetic stainless steel
Surface Flatness
±0.004 in. over 2 ft. square
Mounting Hole Pattern
1 in. grid
Mounting Hole Borders
0.5 in.
Alphanumeric Grid Labels
No
Hole Sealing Type
Easy clean non-corrosive high impact polymer conical cup, 0.75 in. deep
Core Design
Trussed honeycomb, vertically bonded closed cell construction, 0.010 in. steel sheet materials, 0.030 in. triple core interface
Bottom Skin Material
3/16 in. thick carbon steel

Horizontal Isolation, Res.
1.9 Hz
Horizontal Amplification at Resonance
12.5 dB
Horizontal Isolation, 5 Hz
80%
Horizontal Isolation, 10 Hz
94%
Vertical Isolation, Res.
1.7 Hz
Vertical Amplification at Resonance
15 dB
Vertical Isolation, 5 Hz
86%
Vertical Isolation, 10 Hz
96%
Load Capacity per Isolator
800 lb
Maximum Payload
2740 lb
Weight - Tabletop
460 lb
Weight - System
709 lb
Crated Weight - Tabletop
610 lb
Crated Weight - System
919 lb
Frame Assembly Height
28.7 ±0.5 in.
Maximum Air Pressure
85 psi
