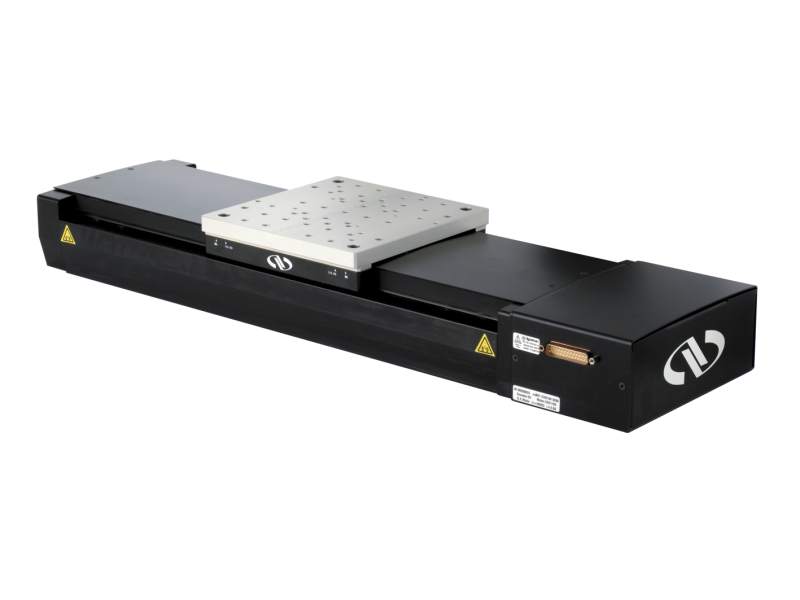

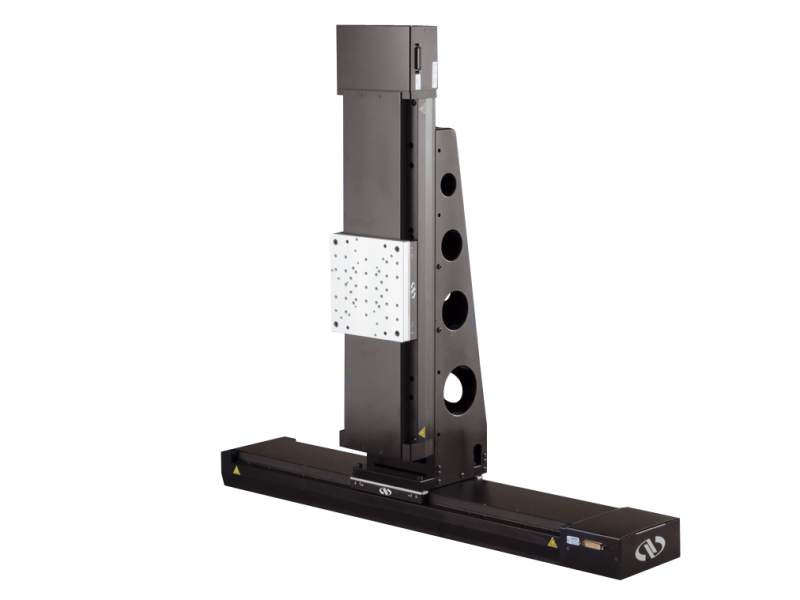

Motorized Linear Stage, Stepper, Rotary Encoder, 300 mm Travel, 1/4-20

Technical Specs

  • Travel Range
    300 mm
  • Maximum Speed
    100mm/s
  • Minimum Incremental Motion
    1.25 µm
  • Centered Load Capacity
    600 N
  • Axial Load Capacity (+Cx)
    30 N
  • Inverse Axial Load Capacity (-Cx)
    -30 N
  • Accuracy, Typical
    ±2.5 µm
  • Accuracy, Guaranteed
    ±5.0 µm
  • Uni-directional Repeatability, Typical
    ±.45 µm
  • Uni-directional Repeatability, Guaranteed
    .±.65 µm
  • Bi-directional Repeatability, Typical
    ±.70 µm
  • Bi-directional Repeatability, Guaranteed
    ±1.25 µm
  • Pitch, Typical
    ±37 µrad
  • Pitch, Guaranteed
    ±75 µrad
  • Compliance in Pitch
    0.2 µrad/Nm
  • Yaw, Typical
    ±15 µrad
  • Yaw, Guaranteed
    ±50 µrad
  • Compliance in Yaw
    1 µrad/Nm
  • Compliance in Roll
    1 µrad/Nm
  • Origin Repeatability
    ±0.5 µm
  • Cable Length
    5 m
  • Thread Type
    1/4-20
  • Weight
    17kg
  • MTBF
    20,000 h (25% load, 30% duty cycle)
  • RoHS
    Compliant
  • Maximum Power Consumption
    40 W
  • Compatible XPS-RL Driver Module
    XPS-DRV01
  • Compatible XPS-D Driver Module
    XPS-DRV11
  • ESP301 Compatibility
    Yes
