Iris Diaphragm, 1.5 to 25 mm Aperture Range, 8-32, 14 Leaves

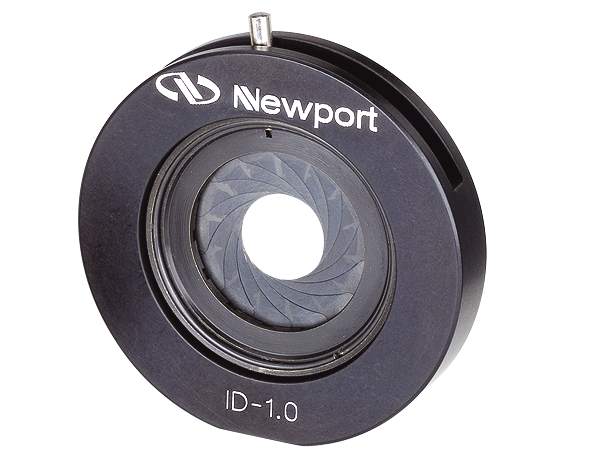

The ID-1.0 Iris Diaphragm uses 14 leaves to provide a continuously variable 1.5 to 25 mm aperture for applications including setting the numerical aperture of a lens, controlling or measuring the intensity of a diffuse beam, or approximating beam diameters. It may also be used as a baffle to reduce spurious reflections and scattered light. Designed for smooth adjustment and the best possible aperture shape, each iris consists of an array of curved, spring-steel leaves whose orientation is determined by the relative position of two rings. A pin handle on the inner ring lets you adjust the aperture without risk of obstructing the beam path. The ID-1.0 Iris Diaphragm mounts directly on Posts and Pedestals. This product is also available in 6-piece saving pack
Continuously Adjustable Opening With Ideal Shape

For smooth adjustment and an optimal shape for the aperture opening, each iris consists of an array of curved, overlapping, spring-steel leaves that intersect into the circular opening. Up to 18 leaves adjust continuously between two supporting rings with the adjustment of a pin handle attached to the inner ring.
Resources & Downloads
2D Product Drawings
ID-1-0-1-525-S(73.9 kB, PDF)
Other
ID-1.0 RoHS Certificate(277.9 kB, PDF)
Related Products
Frequently Purchased Together
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
![]() | ID-1.5Iris Diaphragm, 2.4 to 41.3 mm Aperture Range, 8-32, 18 Leaves |
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

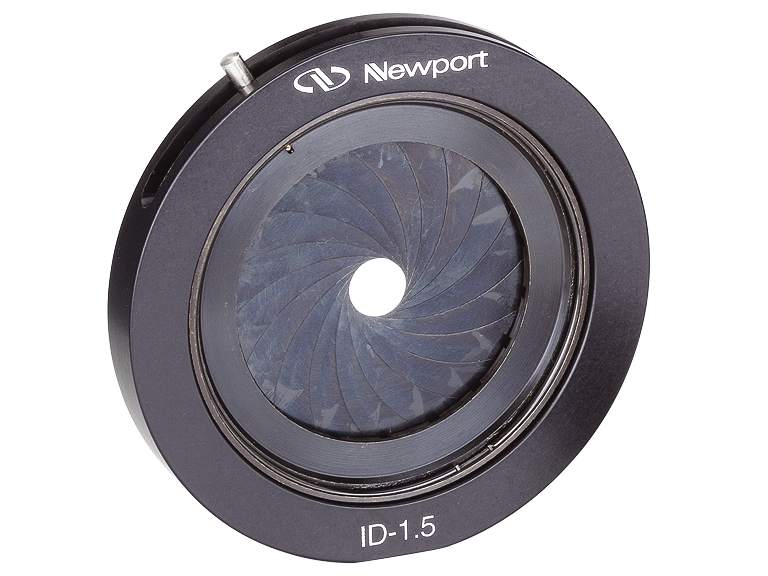

![]() | ID-1.5Iris Diaphragm, 2.4 to 41.3 mm Aperture Range, 8-32, 18 Leaves | |||||
![]() | ID-0.5Iris Diaphragm, 1 to 11 mm Aperture Range, 10 Leaves | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
![]() | M-ID-1.0Iris Diaphragm, 1.5 - 25 mm Aperture Range, M4 Thread, 14 Leaves | |||||

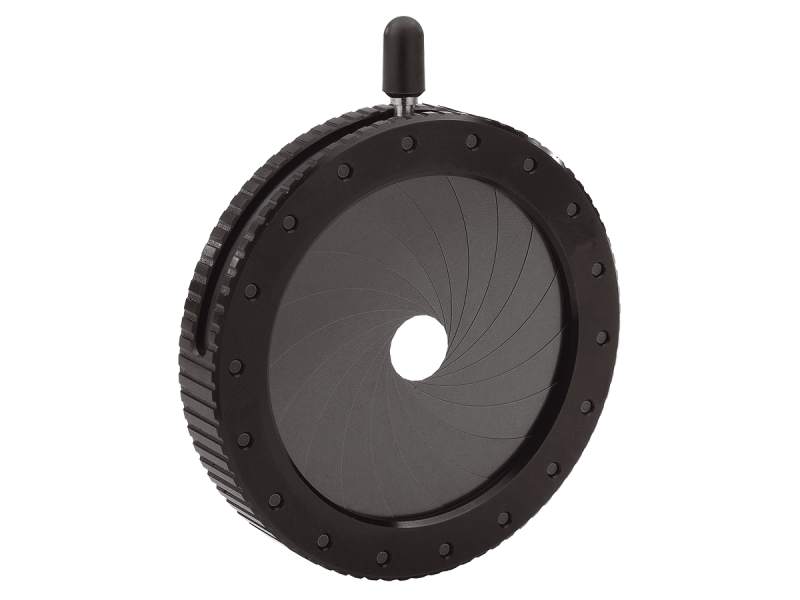

![]() | M-DI47.50Iris Diaphragm, Continuously Variable 5 to 49 mm Aperture |
