Sorry, this product is no longer offered for sale. The recommended replacement product is FWM1X12.
Optical Filter Wheel, Eight Position, 1.0 in. Diameter, Edge Grip

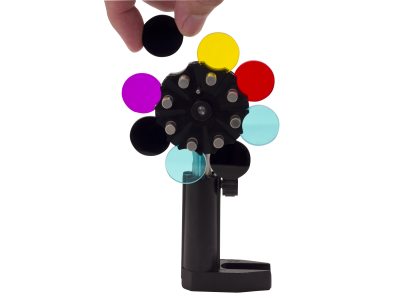

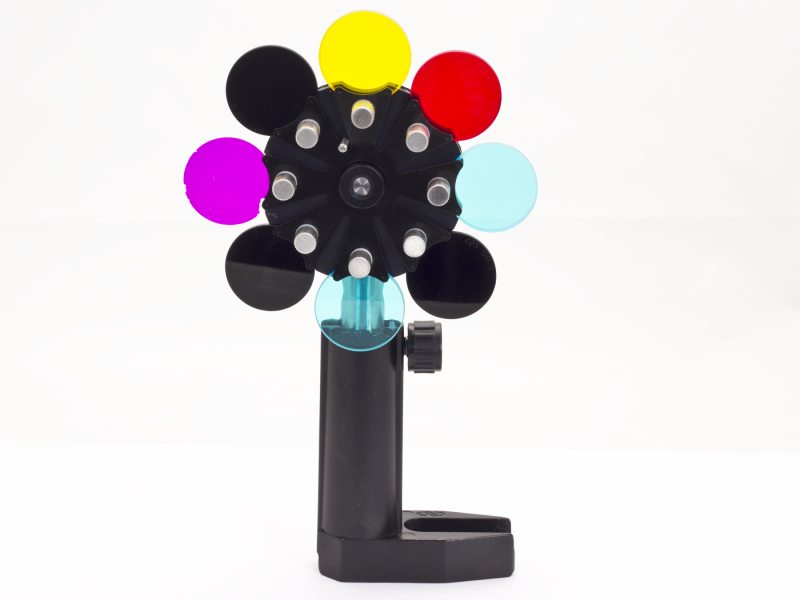

The Edge Grip™ FWH1 is a unique eight-position, clear edge filter wheel. Its new Edge Grip filter mounting design makes it stand out from other filter wheels. While typical filter wheels employ cumbersome retaining rings to hold the filters, the FWH1's clip mounting design allows fast, tool-free installation / removal. The unique clip design has the added benefit of giving clear edge access to the filters it holds. Additionally, it can hold up to eight filters instead of just six. The FWH1 has two threaded holes (one 8-32 and one M4) in its body for post mounting
Specifications
- Filter ShapeRound
- Filter Diameter25.4 mm
- Maximum Thickness4 mm
- Number of Filters8
- MechanismThumbscrew Clamp
- Mounting Threads8-32 and M4
- Filter Size Circular or Square25.4 mm
