Sorry, this product is no longer offered for sale.
8 SMF28 Ribbon Cable, Singlemode, 1310/1550 nm, 0.14 NA

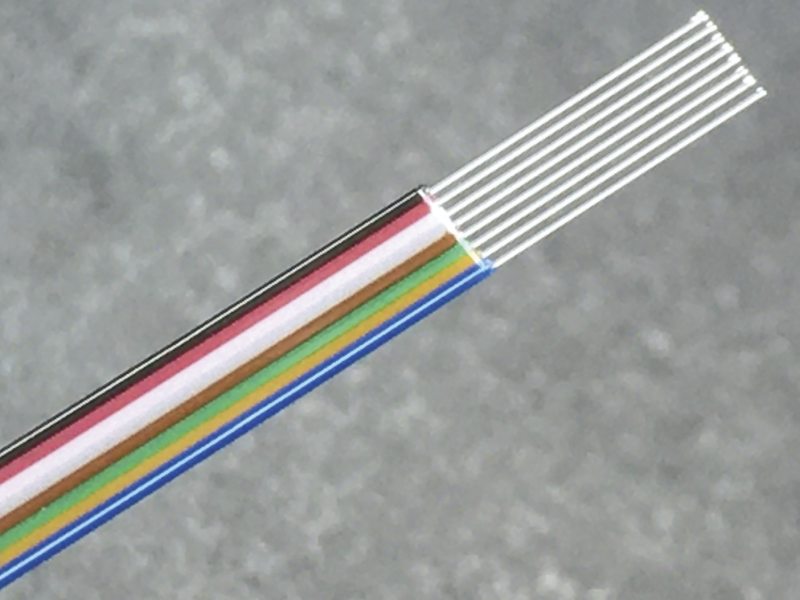

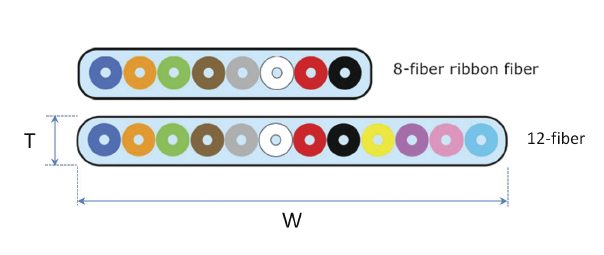

The F-R33-8 is a ribbon cable with 8 SMF-28 Single-Mode Fibers. Typical applications include sensors, instrumentation, device pigtailing, and light delivery where there is tight installation space as is the case in many data centers. Commonly used with MTP or MPO connectors. Standard pricing is per meter.
Specifications
- Index ProfileStep
- Fiber TypeSinglemode
- Core Diameter8.2 µm
- Cladding Diameter125 ±1 µm
- Coating Diameter245 ±5 µm
- Operating Wavelength1310/1550 nm
- Cut-off Wavelength1220 - 1300 nm
- Buffer Coating MaterialDual Acrylate
- Maximum Attenuation0.32/0.18 dB/km @1310/1550 nm
- Numerical Aperture0.14
- Proof Test100 kpsi
Resources & Downloads
Literature
Ribbon Fiber Spec Sheet(203.2 kB, PDF)
