Polarization Maintaining Coupler, 50/50, 850 nm, FC/APC Connectors

Fixed Ratio Polarization Maintaining Couplers

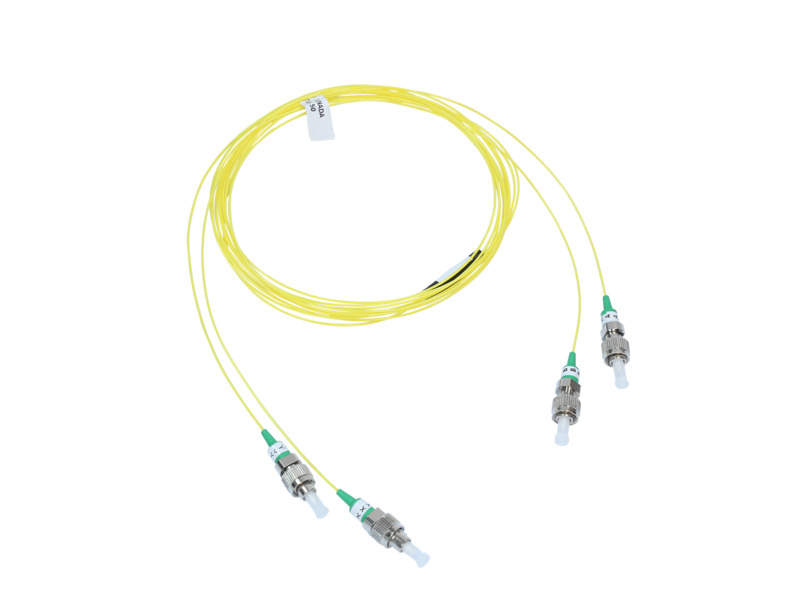

The F-PMC-850-50 Polarization Maintaining (PM) Fiber Optic Coupler utilizes evanescent wave coupling to provide a fixed 50/50 ratio 2x2 coupler, with high polarization extinction ratio (PER) and low insertion loss for the 850 nm wavelength. This coupler enjoys inherent advantages because there is no deformation in the wave-guide cores. Furthermore, since the two Panda fiber halves are placed in direct contact with each other, these PM fiber couplers are more resistant to aging and environmental effects. The F-PMC comes in a small, specially designed silicone rubber package that allows low stress contact of the fiber halves over a broad range of temperatures. All couplers come standard with 1 meter fiber pigtails and FC/APC connectors.

Evanescent Wave Coupling

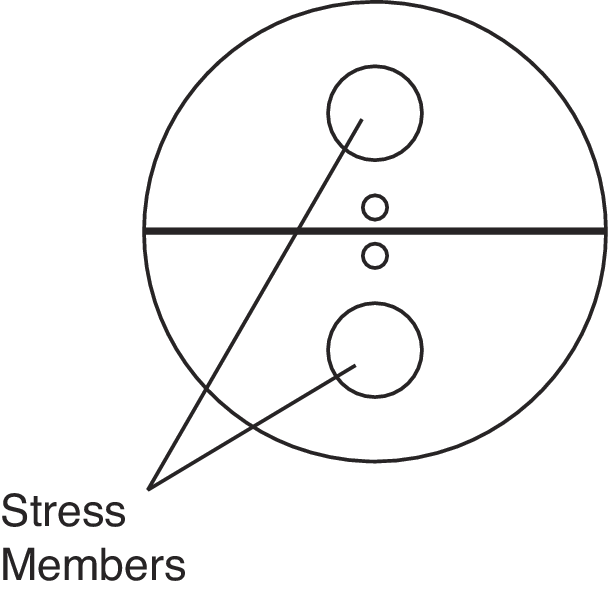

The F-PMC series utilizes evanescent wave coupling to provide fixed ratio 2x2 couplers with high PER and low insertion loss. Evanescent wave coupling is achieved by placing the two Panda fiber halves in direct contact with each other. The rate of the coupling ratio change is nominally 0.2 % per nm, as the wavelength of the light source is away from the specified wavelength. For example, a 50/50 coupler at 1060nm would be 48/52 at 1070nm and 52/48 at 1050nm.

Compact Silicone Rubber Package

These PM couplers come in a small, specially designed silicone rubber package that allows low stress contact of the fiber halves over a broad range of temperatures. They also feature standard 1-m pigtails and FC/APC connectors. Various wavelength versions and coupling ratios are available.

Advanced Wave-guide Design

These couplers enjoy inherent advantages because there is no deformation in the wave-guide cores. Furthermore, since the two Panda fiber halves are placed in direct contact with each other, these PM fiber couplers are more resistant to aging and environmental effects.

Specifications

Technical Specs

Type
Fixed Ratio PM Coupler
Wavelength Range
850 nm
Fiber Type
Polarization Maintaining
Extinction Ratio
-24 to-27 dB
Typical Insertion Loss
0.05 dB
Maximum Insertion Loss
0.2 dB
Maximum Excess Loss
<0.1 dB

Return Loss
-70 dB (Typical)
Coupling Ratio
50/50
Back Reflection
<-65 dB
Operating Temperature
-15 to 55 °C
Dimensions
30 x 6 x 6 mm

Type
Fixed Ratio PM Coupler
Wavelength Range
850 nm
Fiber Type
Polarization Maintaining
Extinction Ratio
-24 to-27 dB
Typical Insertion Loss
0.05 dB
Maximum Insertion Loss
0.2 dB
Maximum Excess Loss
<0.1 dB

Return Loss
-70 dB (Typical)
Coupling Ratio
50/50
Back Reflection
<-65 dB
Operating Temperature
-15 to 55 °C
Dimensions
30 x 6 x 6 mm
