Sorry, this product is no longer offered for sale. The recommended replacement product is F-PATCH-CUSTOM.

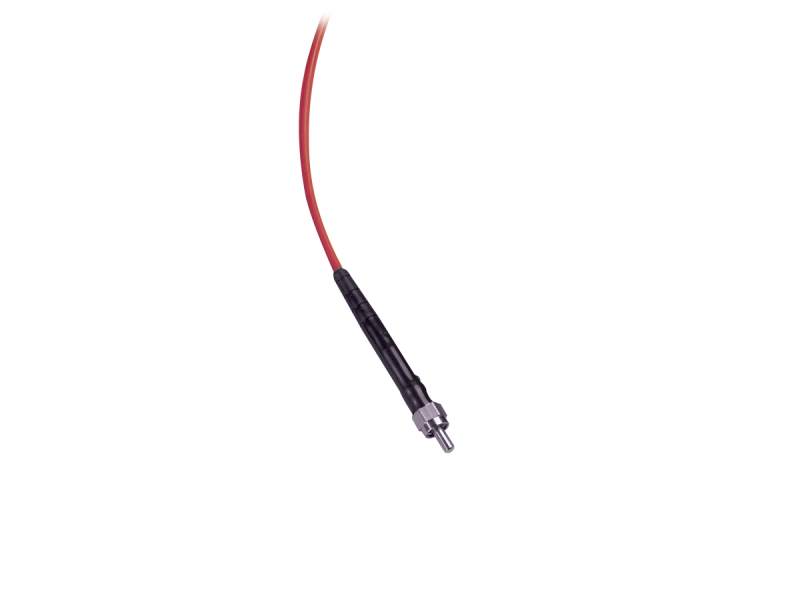

Fiber Patch Cord, Multi-mode Step Index, 500-1100 nm, F-MBE, 3 m, FC.

The F-MBE-3FC is a 3 meter length multi-mode step index fiber patch cord with FC connectors. A 1000 μm core diameter with a bonded hard polymer 1035 μm cladding supports 500-1100 nm operation.

Specifications

Technical Specs

Index Profile
Step
Fiber Type
Multimode
Core Diameter
1000 ±15 µm
Cladding Diameter
1035 ±15 µm
Coating Diameter
1400 ±50 µm
Fiber Connector
FC/UPC
Fiber Length
3 m

Operating Wavelength
500-1100 nm
Buffer Coating Material
Dual Acrylate
Bend Radius 60 min./20 yrs.
73/118 mm
Numerical Aperture
0.37
Proof Test
100 kpsi

Index Profile
Step
Fiber Type
Multimode
Core Diameter
1000 ±15 µm
Cladding Diameter
1035 ±15 µm
Coating Diameter
1400 ±50 µm
Fiber Connector
FC/UPC
Fiber Length
3 m

Operating Wavelength
500-1100 nm
Buffer Coating Material
Dual Acrylate
Bend Radius 60 min./20 yrs.
73/118 mm
Numerical Aperture
0.37
Proof Test
100 kpsi
